2000-sheet dual input (TTM)—2TM/TTM left door assembly removal

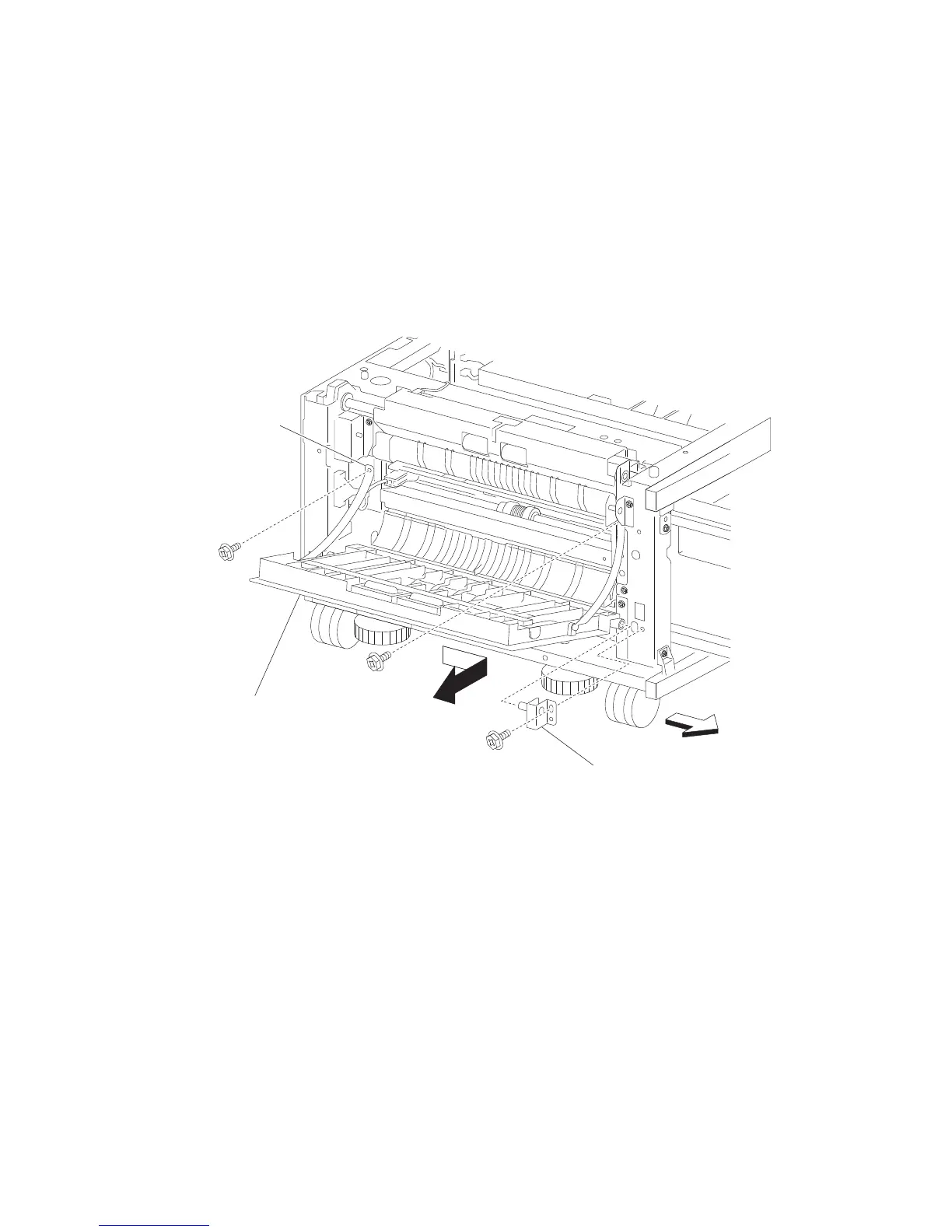

1. Open the 2TM/TMM left door assembly.
2. Remove one screw securing the 2TM/TTM left door support strap (A).
3. Remove one screw securing the bracket (B).
4. Remove the bracket (B).
5. Move the 2TM/TTM left door assembly (C) toward the right and outward in the direction of the arrow.
6. Remove the 2TM/TTM left door assembly (C).
A
C
B
Front
