Lexmark W840 - 2000-Sheet Dual Input (TTM)-Tray 4 Lift Gear Assembly Removal

4-114 Options Service Manual
4024-XXX
2000-sheet dual input (TTM)—tray 4 lift gear assembly removal
1. Remove the rear cover. See “2000-sheet dual input (TTM)—rear cover removal” on page 4-51.
2. Remove the controller card assembly. See “2000-sheet dual input (TTM)—2TM/TTM controller card
assembly removal” on page 4-116.

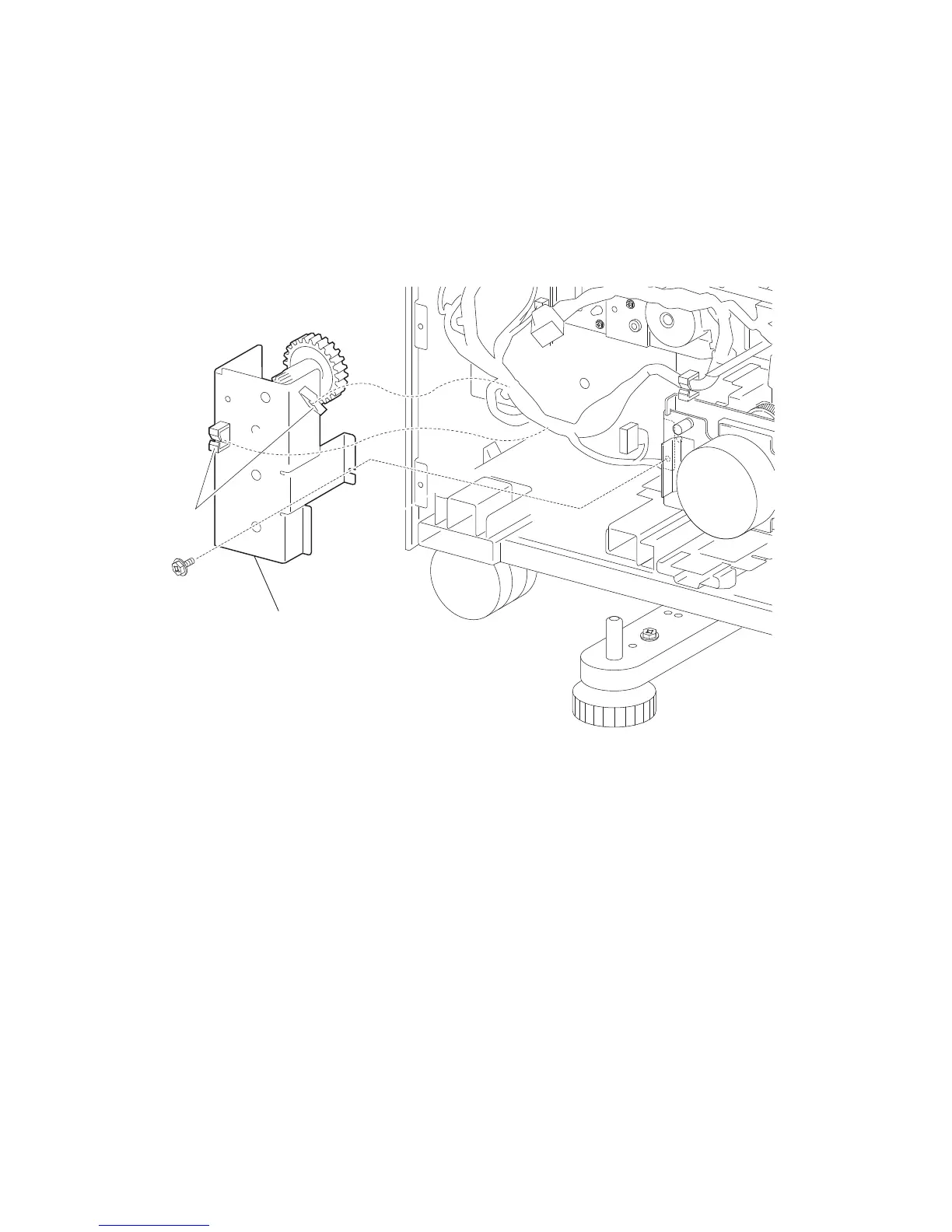

3. Release the two harnesses from the clamp of the tray 4 lift gear assembly (A).
4. Remove two screws securing the tray 4 lift gear assembly (A).
5. Remove the tray 4 lift gear assembly (A).
A
Clamps
