4-36 Options Service Manual
4024-XXX

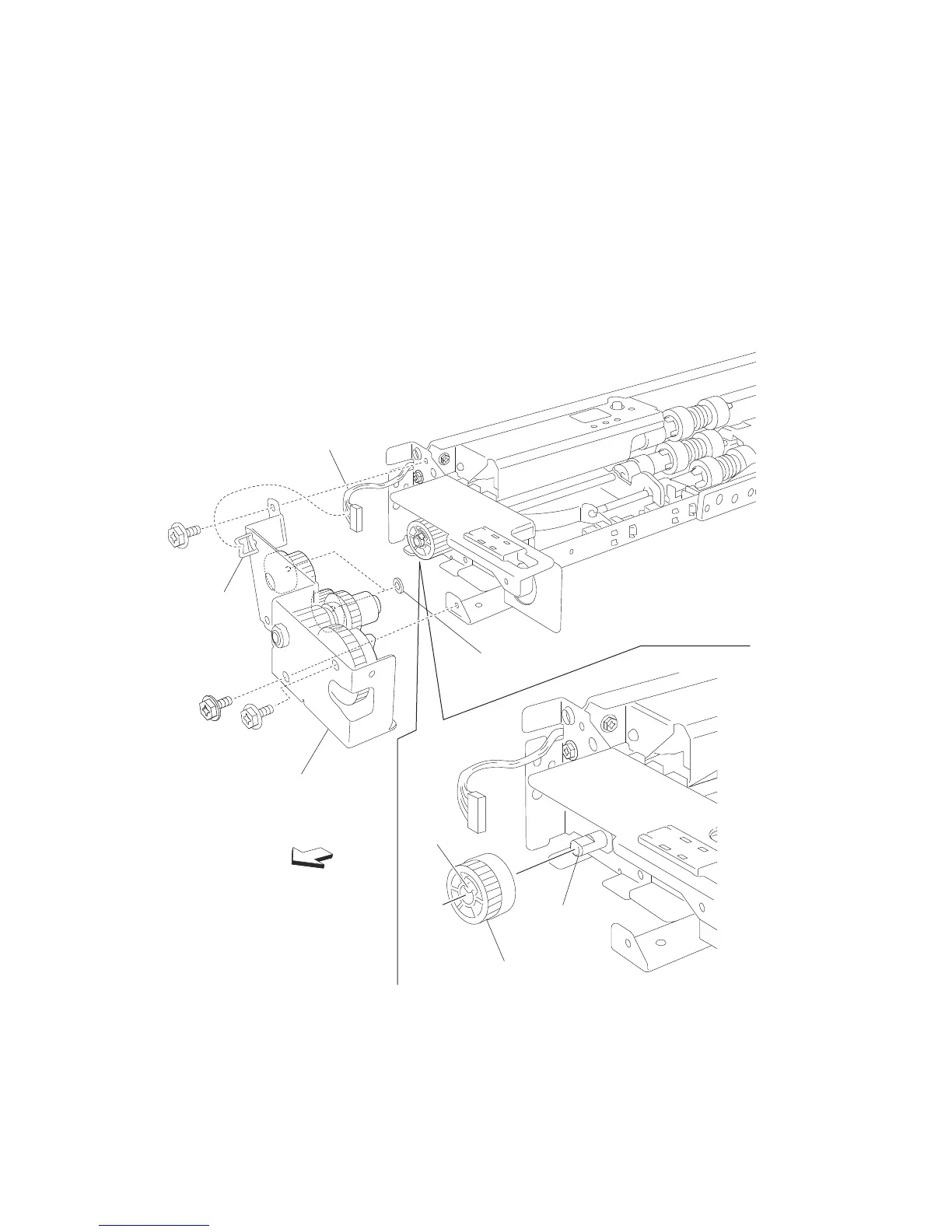

2X 500-sheet drawer (2TM)—feed unit drive gear - 27 tooth removal
1. Remove the media feed unit assembly. See “2X 500-sheet drawer (2TM)—media feed unit assembly
removal (tray 3)” on page 4-9 or “2X 500-sheet drawer (2TM)—media feed unit assembly removal
(tray 4)” on page 4-11.
2. Remove the harness from the bracket (A).
3. Remove the three screws securing the bracket (A) to the media feed unit assembly.
4. Remove the bracket (A).
Note: The gears may become detached from the bracket (A).
5. Remove the hook securing the feed unit drive gear - 27 tooth (B) to the shaft (C).
6. Remove the feed unit drive gear - 27 tooth (B).
Note: Before re-installing, ensure all gears and washers are securely attached to the bracket (A).
Harness
Clamp
A
Rear
Hook
B
C
Washer
To Next Page
