Lexmark W840 - 2000-Sheet Dual Input (TTM)-Feed Roll Removal

Repair information 4-101
4024-XXX
2000-sheet dual input (TTM)—feed roll removal

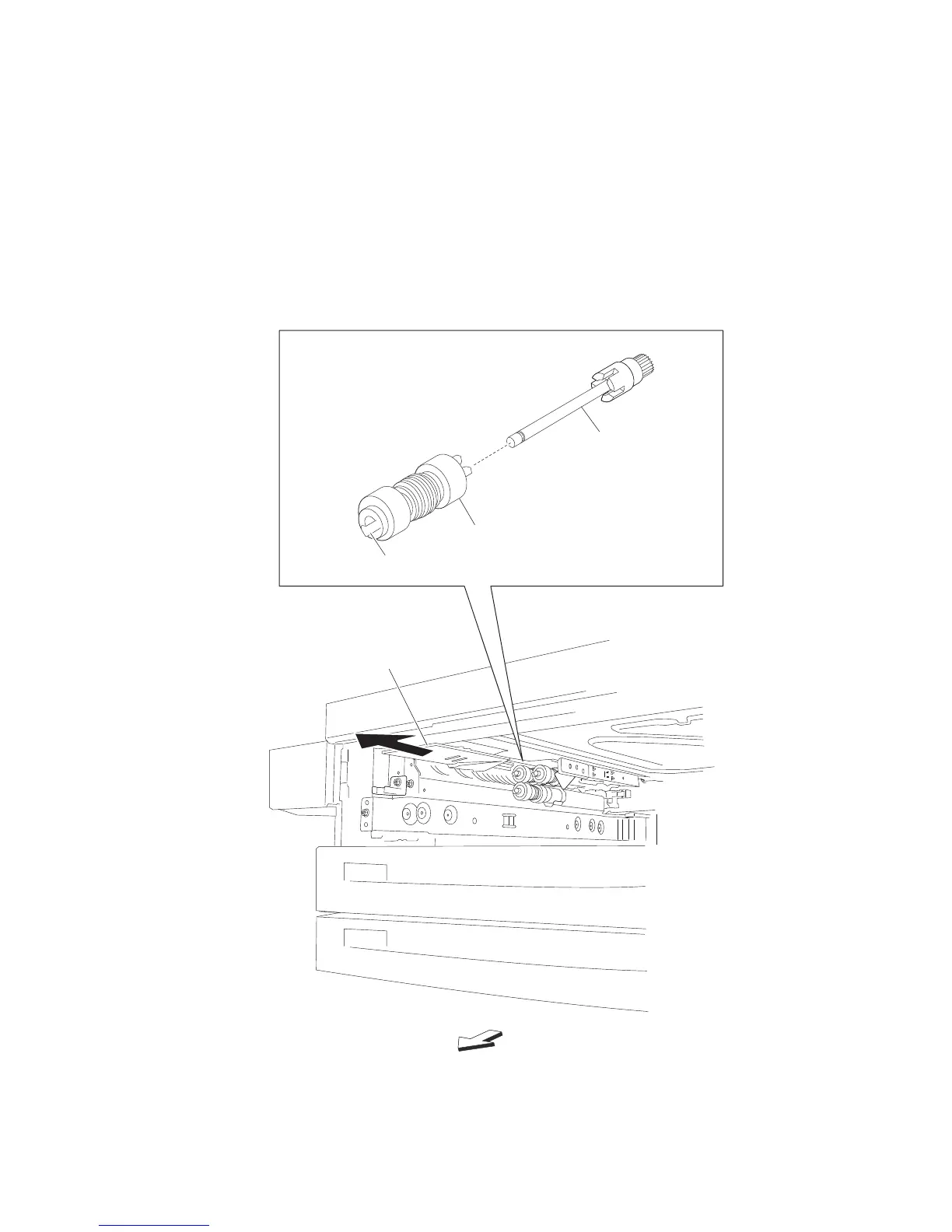

1. Remove the media tray assembly.
2. Move the feed unit front guide (A) in the direction of the arrow.
3. Release the hook securing the feed roll (B) to the shaft (C).
4. Remove the feed roll (B).
Note: Do not touch the rubber surface of the feed roll (B).
Note: Before re-installing, do not touch the rubber surface of the feed roll (B).
Front
A
Hook
C
B
