Lexmark W840 - 500-Sheet Drawer (2 TM)-Media out Actuator Removal

4-22 Options Service Manual
4024-XXX
2X 500-sheet drawer (2TM)—media out actuator removal
1. Remove the media feed unit assembly. See “2X 500-sheet drawer (2TM)—media feed unit assembly
removal (tray 3)” on page 4-9 or “2X 500-sheet drawer (2TM)—media feed unit assembly removal
(tray 4)” on page 4-11.
2. Remove the two bosses on the media out actuator (A) to the media feed unit assembly.
3. Remove the media out actuator (A).

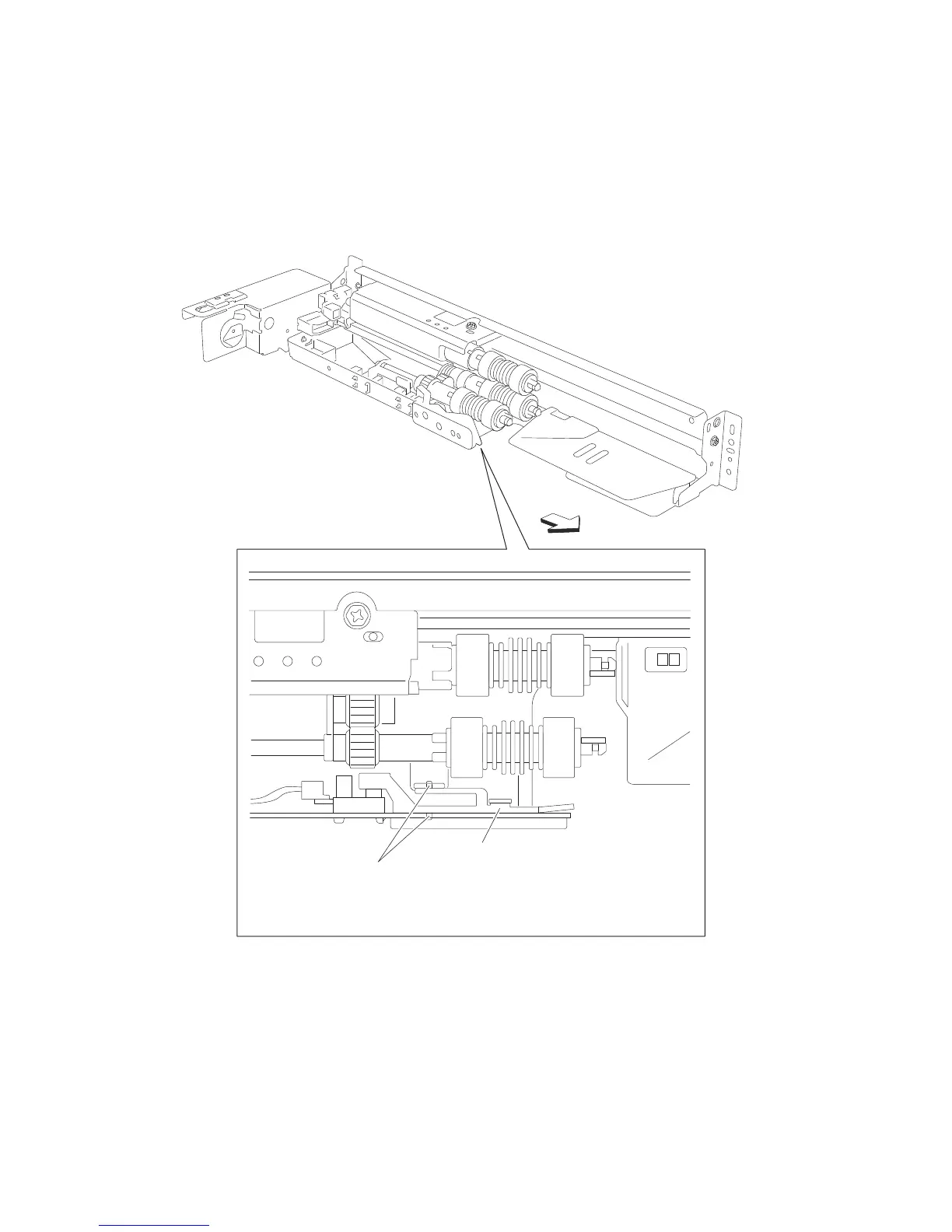

Front
Bosses
Lower view
A
