Lexmark W840 - HCF Sensor (HCF Media Tray Set) Removal

Repair information 4-121
4024-XXX
HCF sensor (HCF media tray set) removal
1. Pull out the HCF media tray.
2. Remove the HCF left cover. See “HCF left cover removal” on page 4-124.
3. Remove the HCF rear cover. See “HCF rear cover removal” on page 4-124.

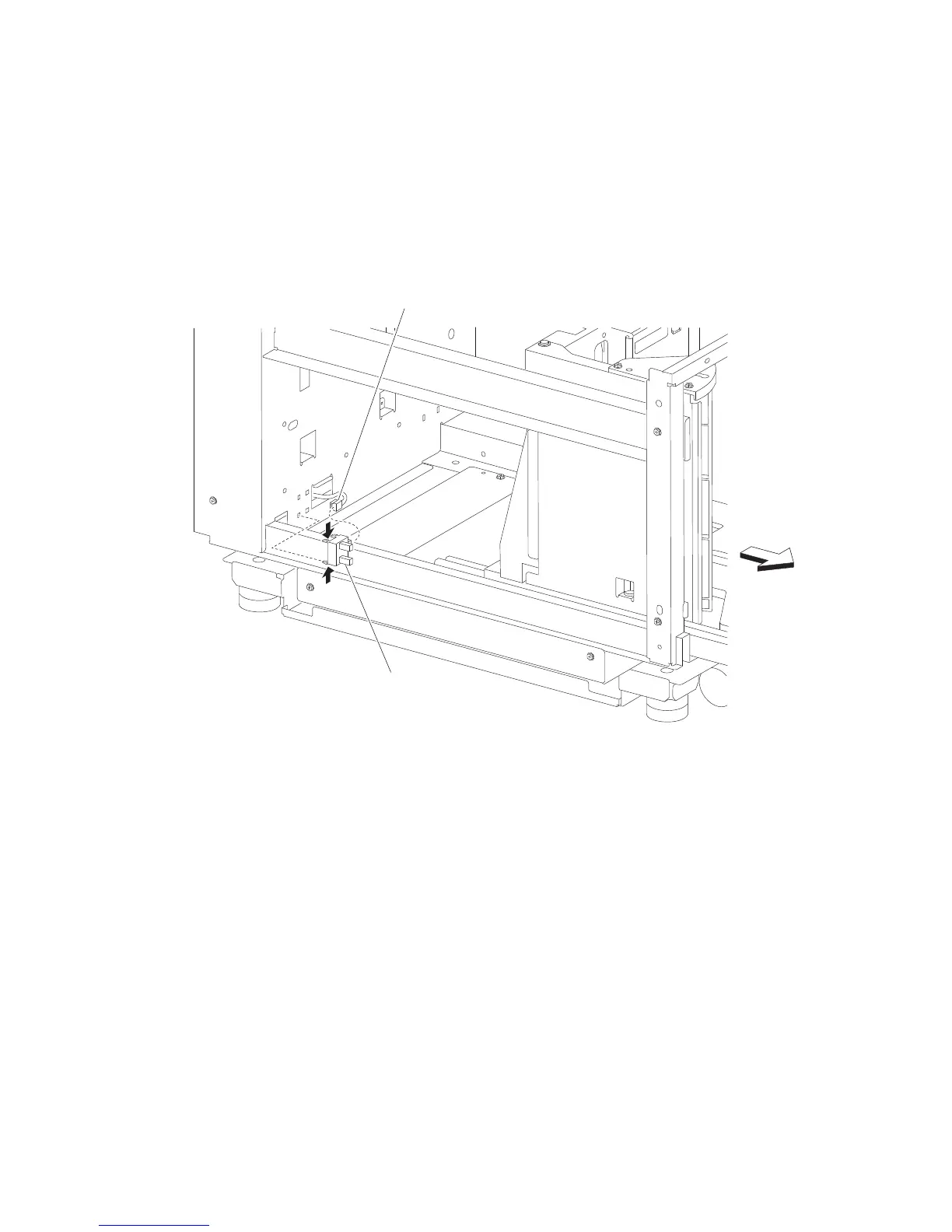

4. Disconnect the connector from the sensor (HCF media tray set) (A).
5. Release the hooks securing the sensor (HCF media tray set) (A) to the unit.
6. Remove the sensor (HCF media tray set) (A).
A
Front
Connector
