Lexmark W840 - 2000-Sheet Dual Input (TTM)-Separation Roll Removal

Repair information 4-105
4024-XXX
2000-sheet dual input (TTM)—separation roll removal
1. Remove the media tray assembly.

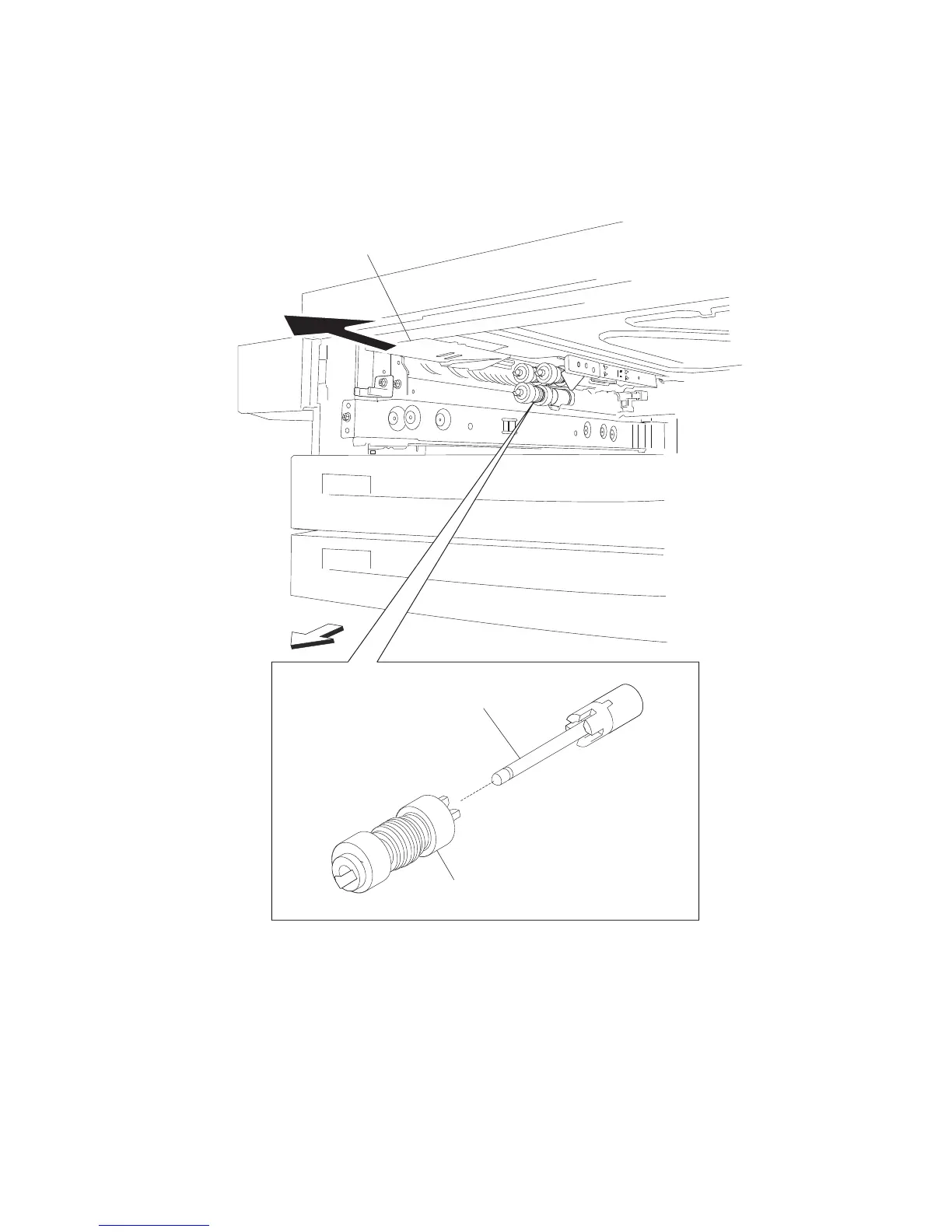

2. Move the feed unit front guide (A) in the direction of the arrow.
3. Release the hook securing the separation roll (B) to the shaft (C).
A
C
B
Front
