Lexmark W840 - 2000-Sheet Dual Input (TTM)-Media Feed Unit Drive Gear 29 Tooth Removal

4-100 Options Service Manual
4024-XXX
2000-sheet dual input (TTM)—media feed unit drive gear 29 tooth removal
1. Remove the media feed unit assembly. See “2000-sheet dual input (TTM)—media feed unit assembly
removal (tray 3)” on page 4-85 or “2000-sheet dual input (TTM)—media feed unit assembly removal
(tray 4)” on page 4-80.

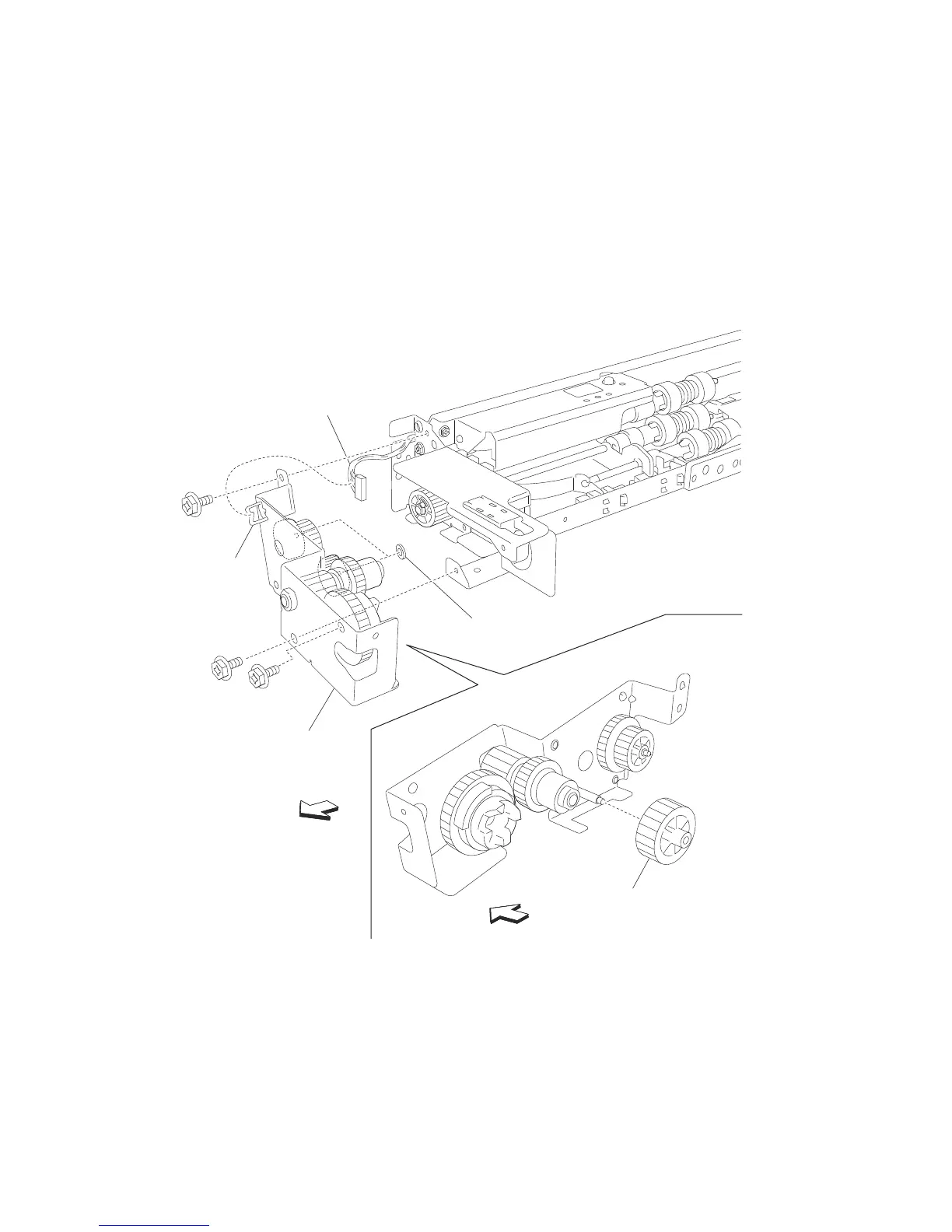

2. Remove the harness from the bracket (A).
3. Remove the three screws securing the bracket (A) to the media feed unit assembly.
4. Remove the bracket (A).
Note: The gears may become detached from the bracket (A).
5. Remove the feed unit drive gear - 28 tooth / 21 tooth (B).
Note: Before re-installing, ensure all gears and washers are securely attached to the bracket (A).
Harness
Clamp
A
Rear
Washer
B
Rear
