Repair information 4-197
4024-XXX
Exit 2 left cover removal
1. Remove the exit 2 unit assembly. See “Exit 2 unit assembly removal” on page 4-192.
2. Open the exit 2 unit assembly.
3. Release two hooks securing the exit 2 left cover (A) to the exit 2 unit assembly.
4. Move the exit 2 left cover (A) downward and outward in the direction of the arrow.
5. Remove the exit 2 left cover (A).
Note: Extra force is required on the rear of the exit 2 left cover to break the seal of the double stick tape.

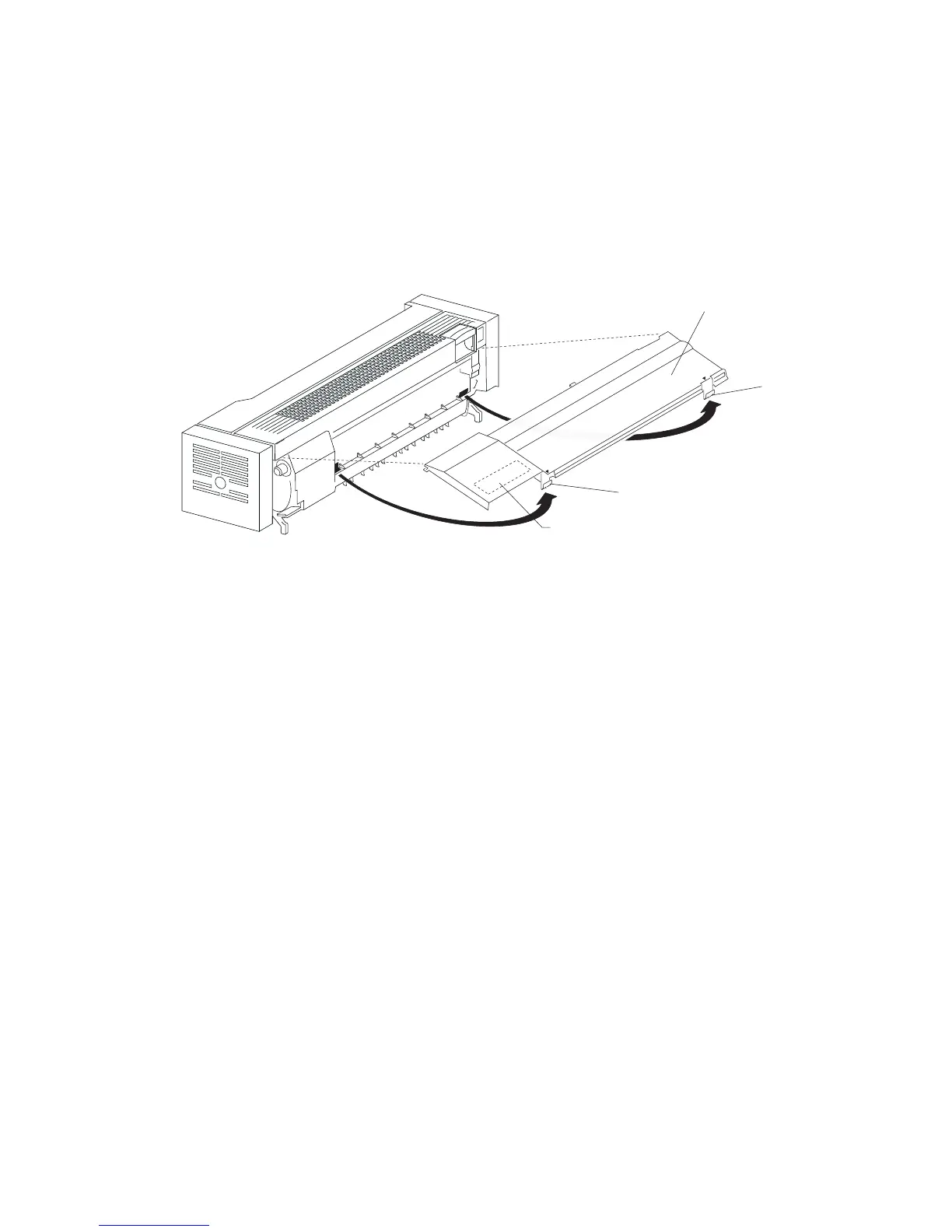

Double stick tape
between covers
A
Hook
Hook
