Lexmark W840 - 500-Sheet Drawer (2 TM)-Pick Roll Idler Gear - 33 Tooth Removal

Repair information 4-33
4024-XXX
2X 500-sheet drawer (2TM)—pick roll idler gear - 33 tooth removal
1. Remove the media tray assembly.
2. Remove the pick roll. See “2X 500-sheet drawer (2TM)—pick roll removal” on page 4-34.
3. Remove the pick roll drive gear - 25 tooth. See “2X 500-sheet drawer (2TM)—pick roll drive gear 25
tooth removal” on page 4-35.

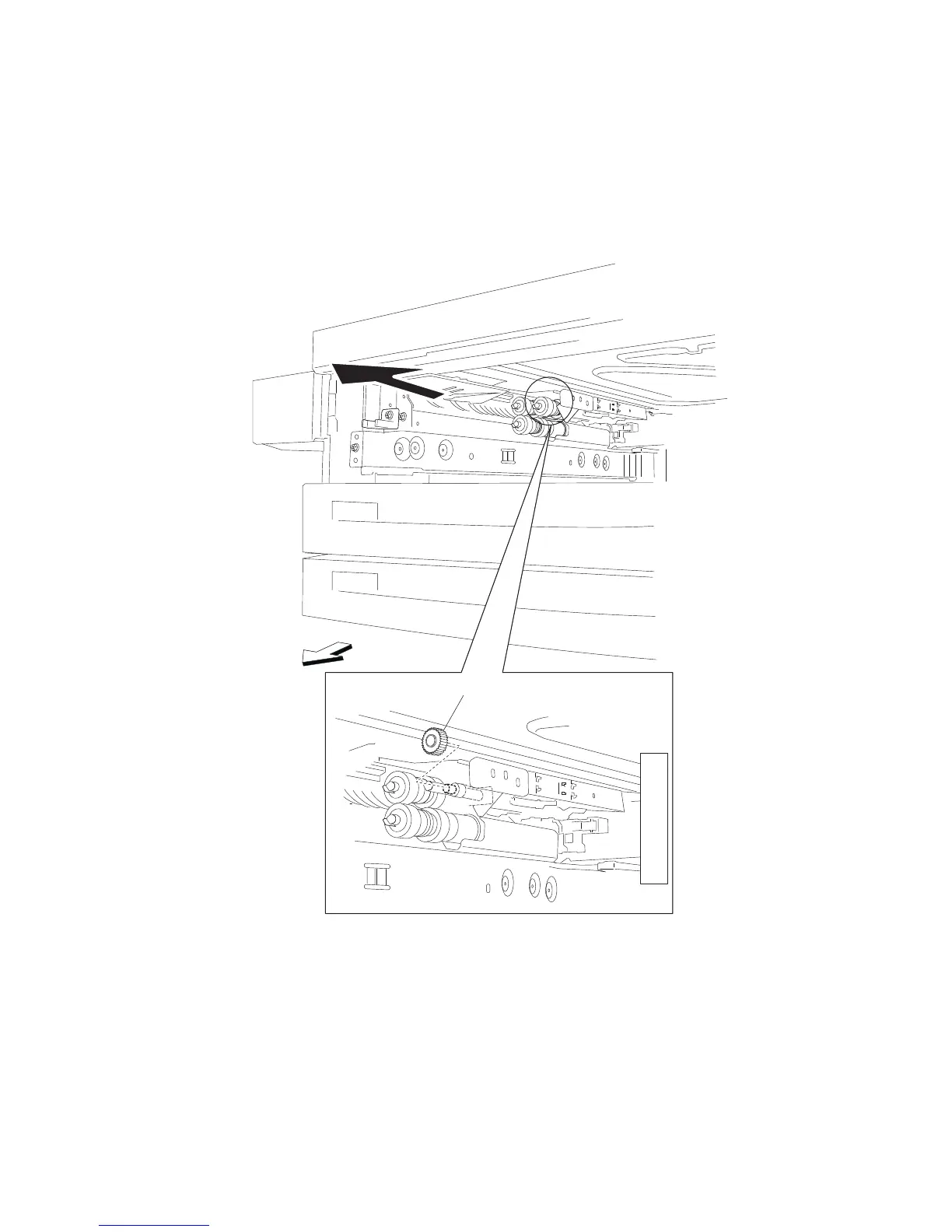

4. Remove the pick roll idler gear - 33 tooth (A).
Front
A
