Repair information 4-125
4024-XXX
HCF media tray front cover removal

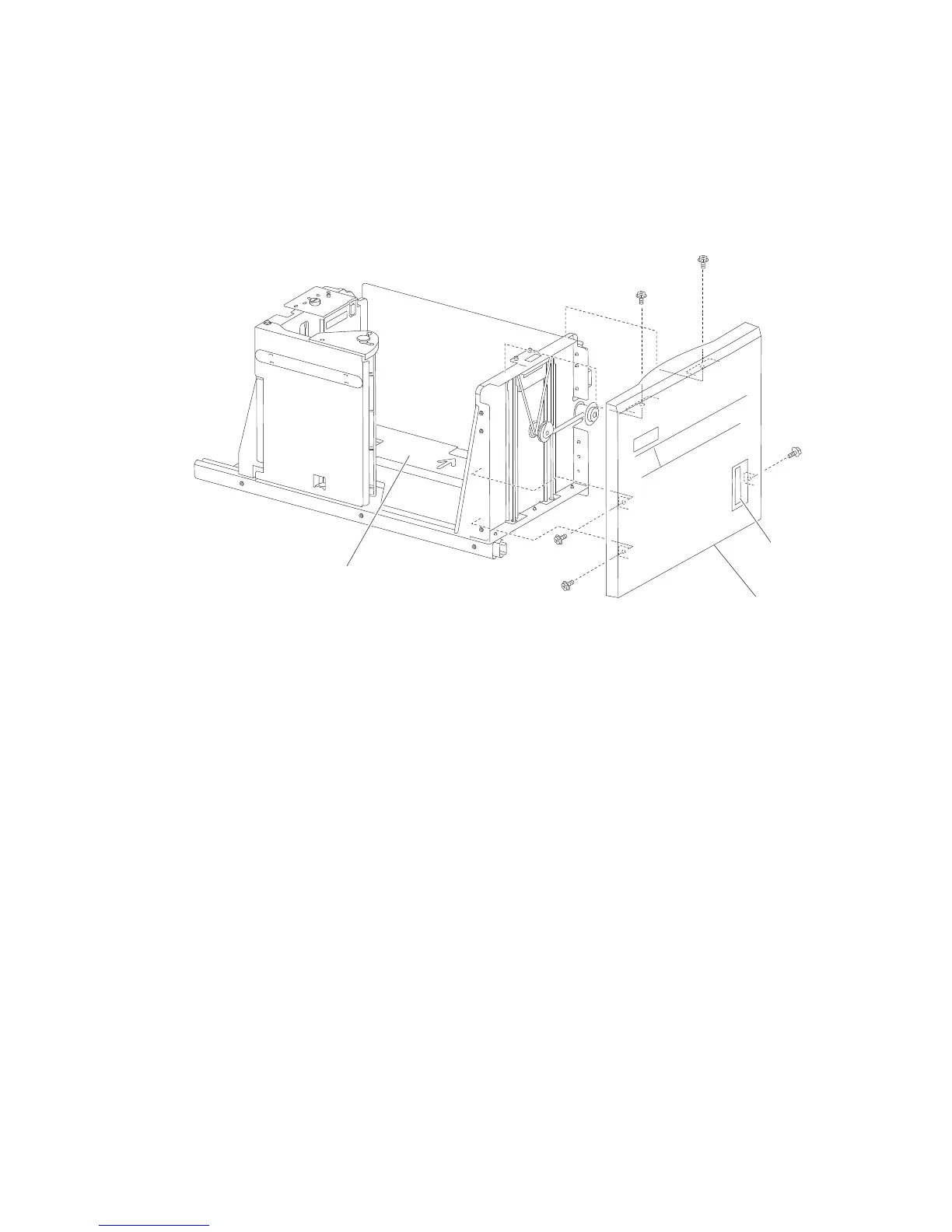

1. Pull out the HCF media tray.
2. Remove the five screws securing the HCF media tray front cover (A) to the HCF media tray.
3. Remove the HCF media tray front cover (A).
Note: Ensure that the HCF media tray assembly contains no media when the bottom plate (B) is raised after
replacing the HCF media tray front cover (A). A series of clicking sounds will be produced during the calibrating
process of the media level indicator (C).
