Lexmark W840 - 2000-Sheet Dual Input (TTM)-Media out Actuator Removal

Repair information 4-95
4024-XXX
2000-sheet dual input (TTM)—media out actuator removal
1. Remove the media feed unit assembly. See “2000-sheet dual input (TTM)—media feed unit assembly
removal (tray 3)” on page 4-85 or “2000-sheet dual input (TTM)—media feed unit assembly removal
(tray 4)” on page 4-80.

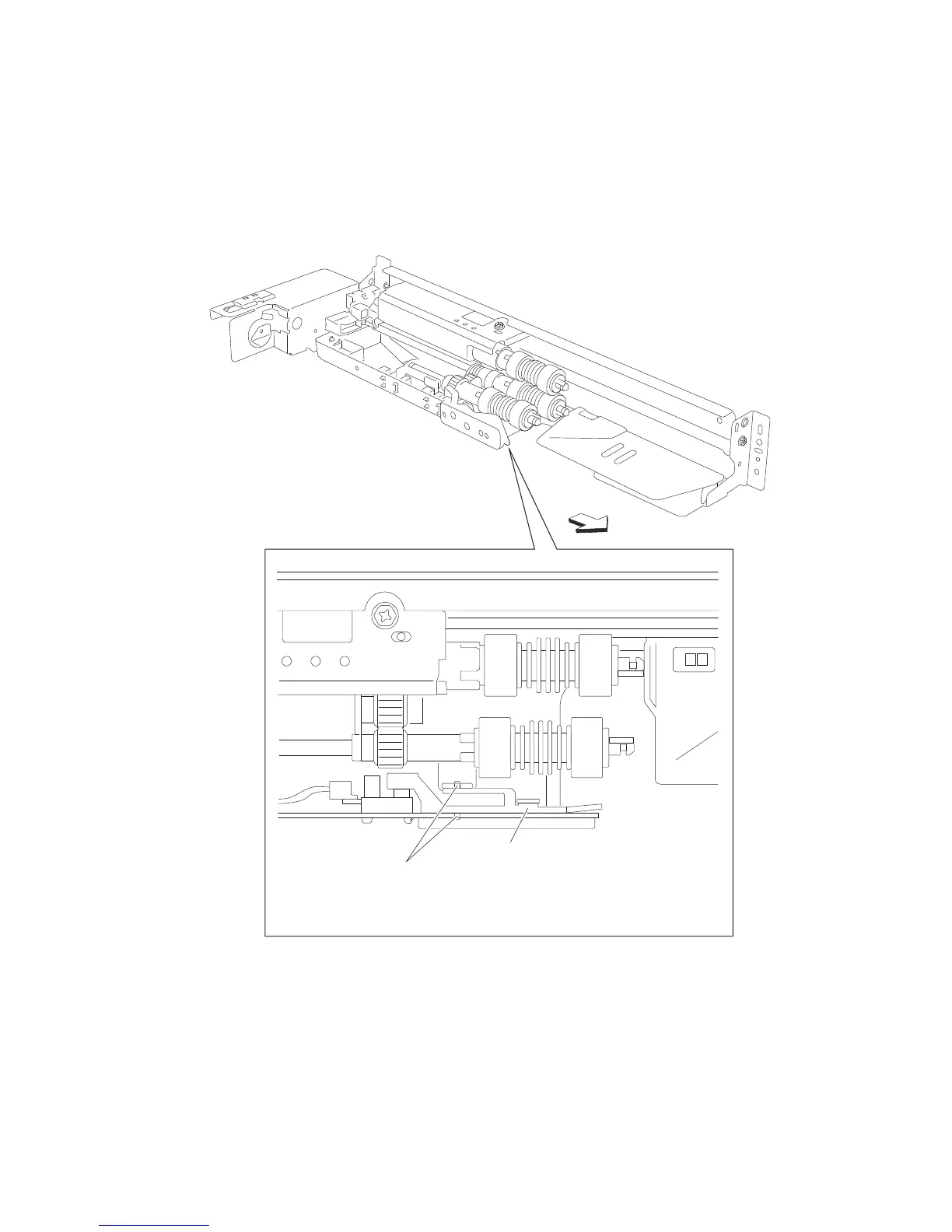

2. Remove the two bosses on the media out actuator (A) from the media feed unit assembly.
3. Remove the media out actuator (A).
Front
Bosses
Lower view
A
