Lexmark W840 - Duplex Unit Assembly Removal

4-154 Options Service Manual
4024-XXX
Duplex unit assembly removal

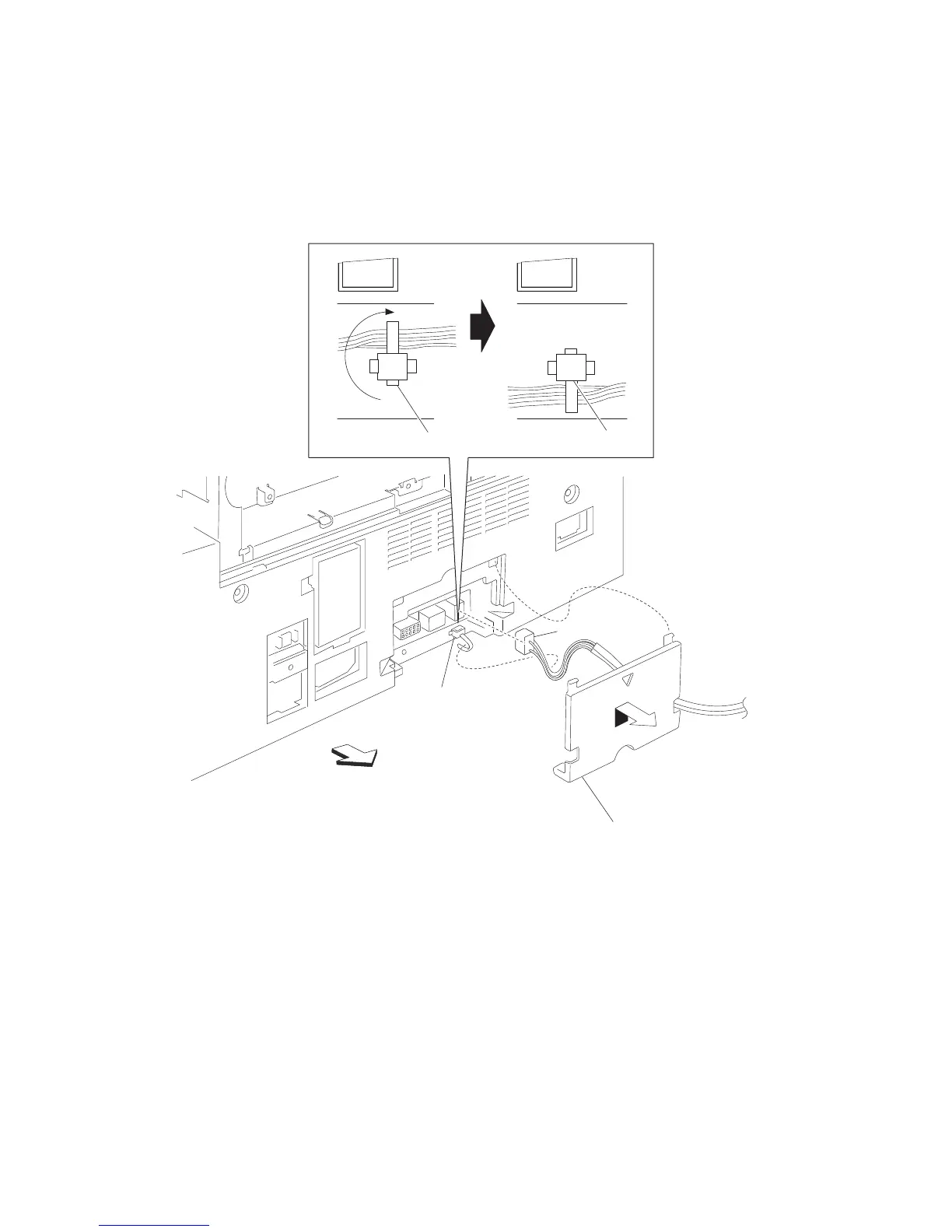

1. Pull the option hookup cover (A) outward in the direction of the arrow to remove.
2. Disconnect the connector of the duplex unit assembly harness from the machine.
3. Release the duplex unit assembly harness clamp from the machine.
4. Open the duplex unit assembly.
Clamp
Connector
Clamp
Clamp
Rear
A
