Repair information 4-155
4024-XXX

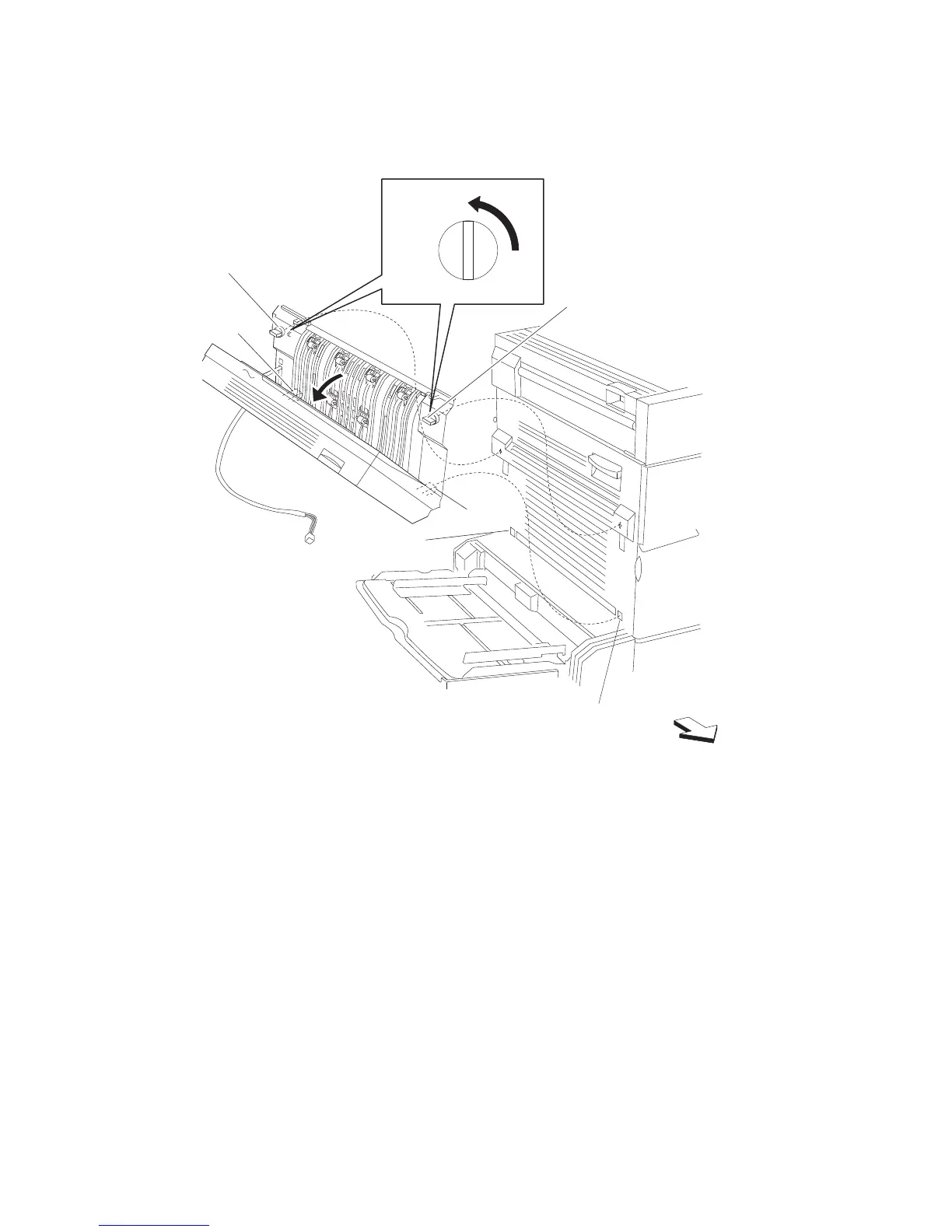

5. Turn the two duplex docking locks (B) on the duplex unit assembly by 90 degrees counterclockwise to
release the duplex unit assembly from the machine.
6. Remove the duplex unit assembly.
Hole
Front
B
Release
Hook
Hole
Hook
B
