Lexmark W840 - 2000-Sheet Dual Input (TTM)-Separation Roll One-Way Friction Clutch Removal

4-104 Options Service Manual
4024-XXX

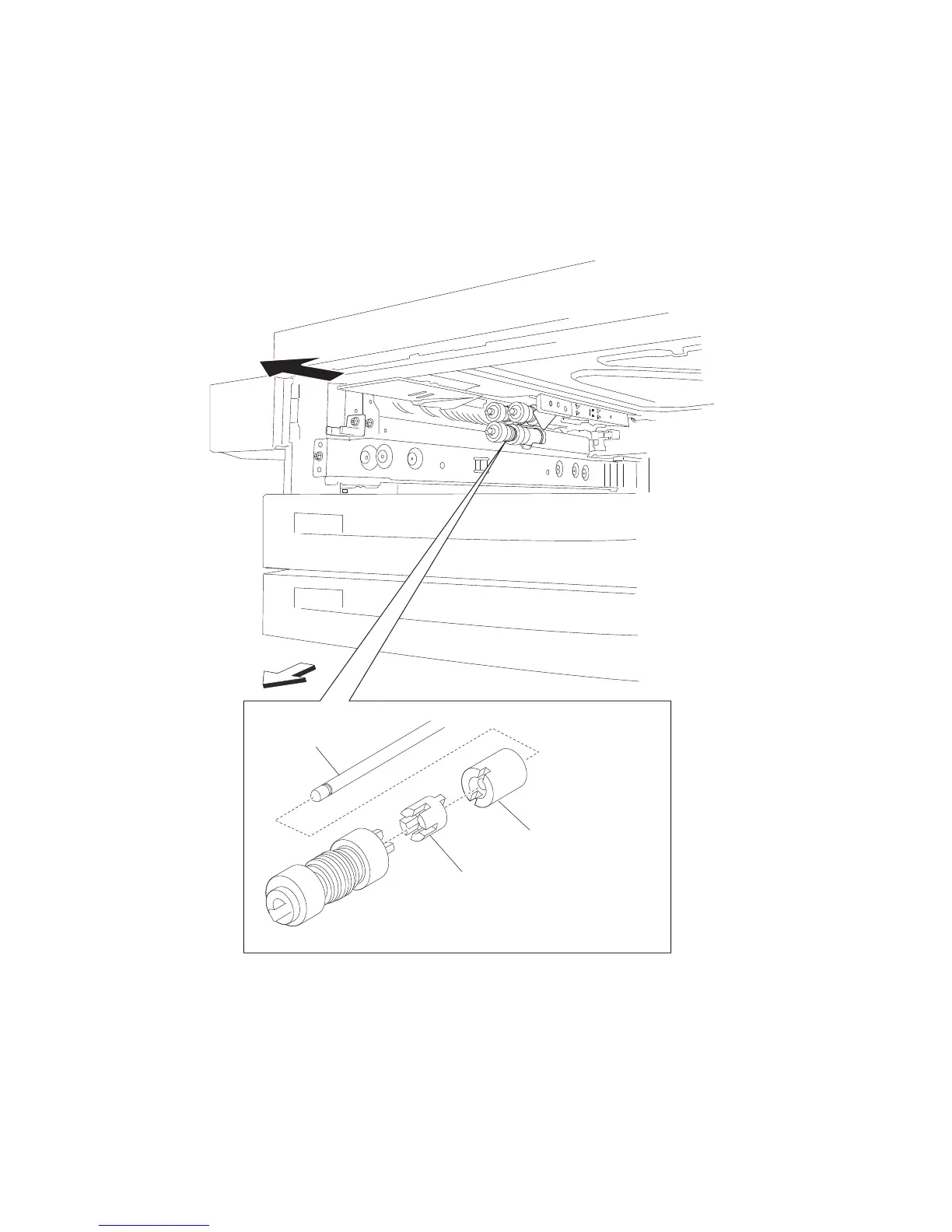

2000-sheet dual input (TTM)—separation roll one-way friction clutch removal
1. Remove the media tray assembly.
2. Remove the separation roll. See “2000-sheet dual input (TTM)—separation roll removal” on
page 4-105.
3. Remove the separation roll spacer (A).
4. Remove the separation roll one-way friction clutch (B).
Front
A
C
B
