2000-sheet dual input (TTM)—sensor (tray 3 feed-out) removal

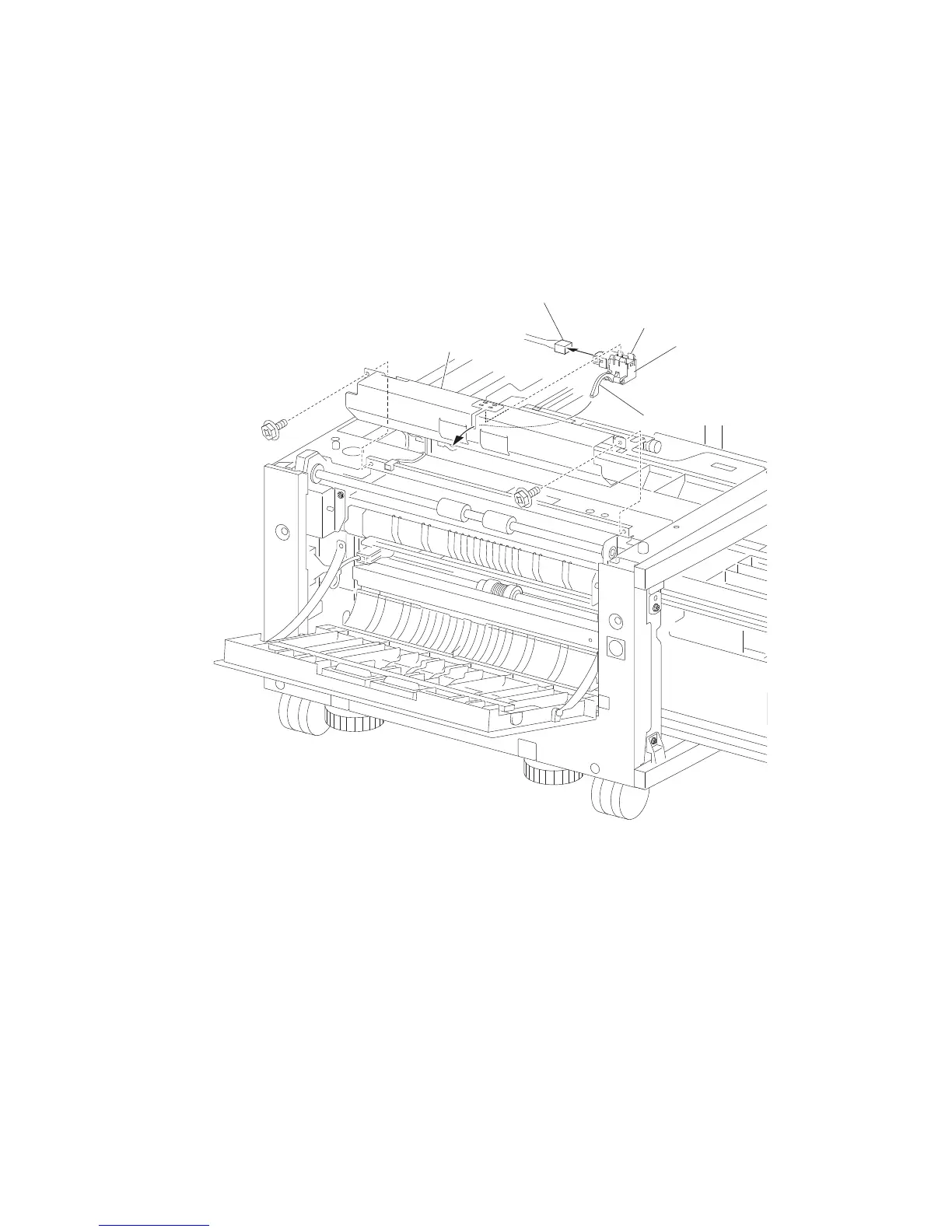

1. Open the left door assembly.
2. Remove two screws securing the bracket (A).
3. Disconnect the connector to the sensor (tray 3 feed-out) (B).
4. Remove the bracket (A).
5. Release the hooks securing the sensor (tray 3 feed-out) (B) to the bracket (A)
6. Remove the sensor (tray 3 feed-out) (B).
A
Connector
Hook
B
Actuator
