Lexmark W840 - Duplex Docking Locks Removal

4-156 Options Service Manual
4024-XXX
Duplex docking locks removal

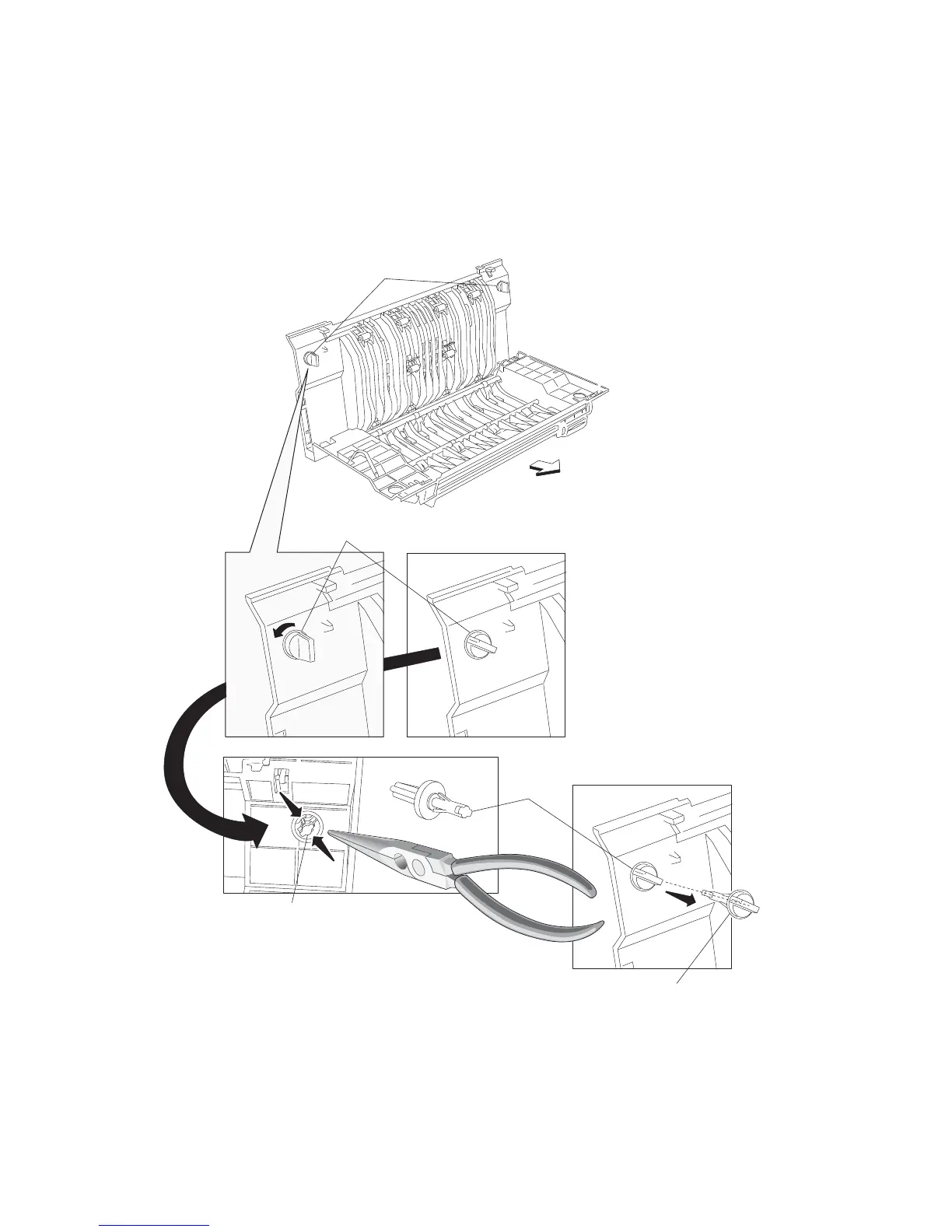

1. Remove the duplex unit assembly. See “Duplex unit assembly removal” on page 4-154.
2. Open the duplex unit assembly.
3. Turn the two duplex docking locks (A) 45 degrees, and release the hooks with needle nose pliers on the
back side securing them to the duplex.
4. Remove the two duplex docking locks (A).
