Lexmark W840 - Exit 2 Right Cover Removal

4-198 Options Service Manual
4024-XXX
Exit 2 right cover removal
1. Remove the exit 2 unit assembly. See “Exit 2 unit assembly removal” on page 4-192.
2. Open the exit 2 unit assembly.
3. Remove the exit 2 left cover. See “Exit 2 left cover removal” on page 4-197.

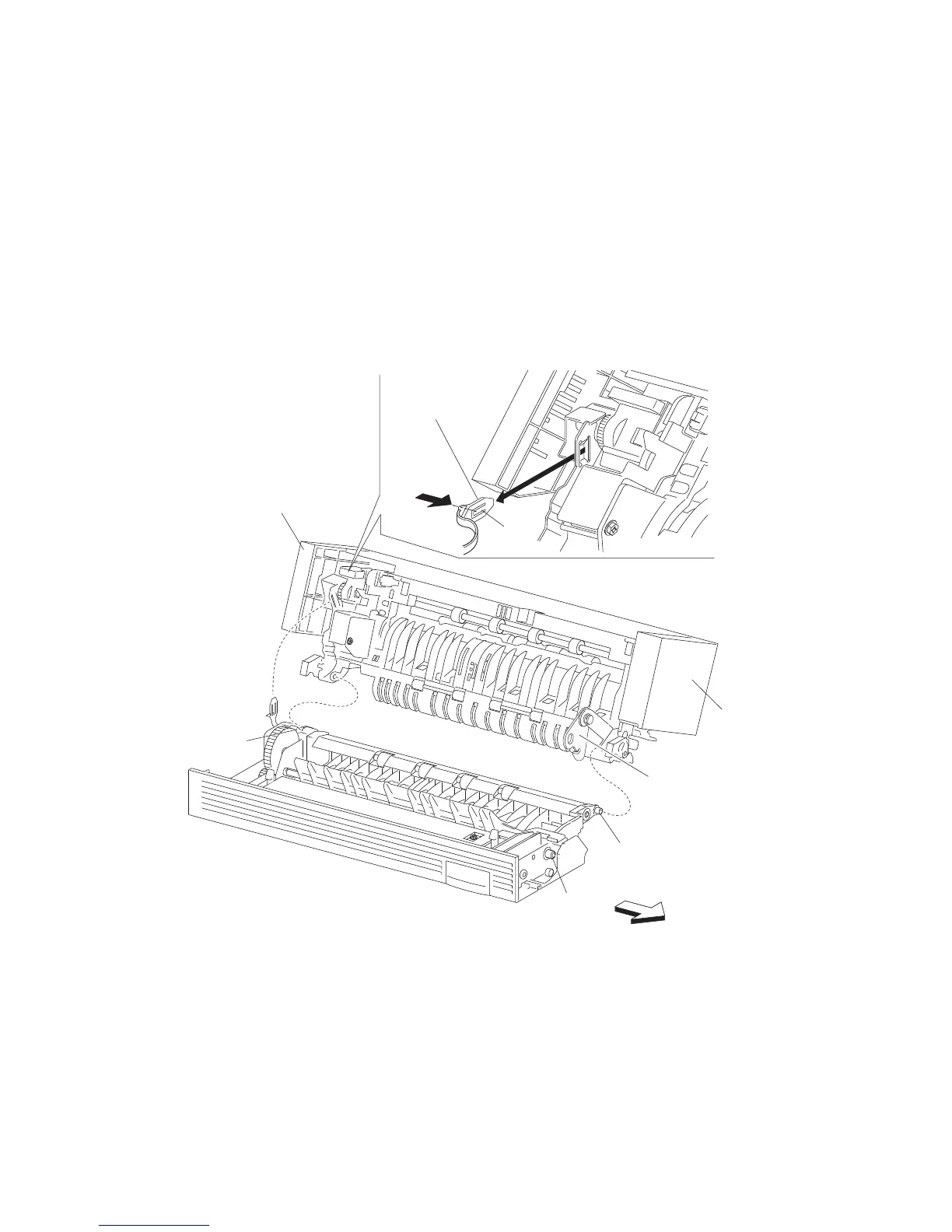

4. Remove the one screw securing the exit 2 front cover (A) to the exit 2 unit assembly.
5. Remove the exit 2 front cover (A).
6. Remove one screw securing the exit 2 rear cover (B).
7. Move the exit 2 rear cover (B) upward and outward in the direction of the arrow.
8. Remove the exit 2 rear cover (B).
9. Release the hook of the exit 2 support strap (C).
10. Gently remove the link (D) from the bracket (E).
E
D
Boss
C
B
Push
Hook
Boss
A
