Lexmark W840 - 2000-Sheet Dual Input (TTM)-Clutch Removal

4-118 Options Service Manual
4024-XXX
2000-sheet dual input (TTM)—clutch removal
1. Remove the rear cover. See “2000-sheet dual input (TTM)—rear cover removal” on page 4-51.

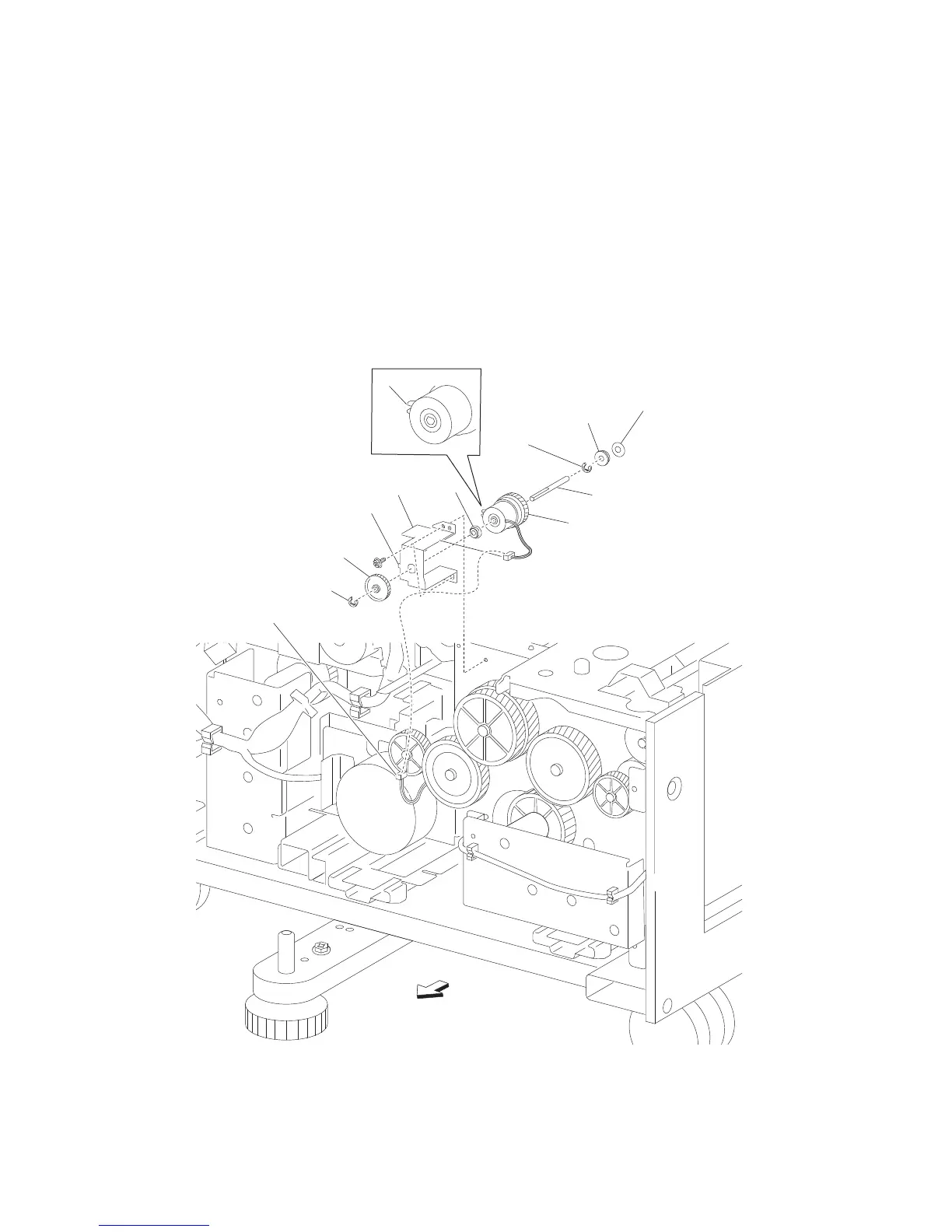

2. Disconnect the connector from the machine to the bracket (A).
3. Remove two screws securing the bracket (A) to the frame assembly.
4. Remove the bracket (A).
Note: The bushing (B) and washer (C) may become detached from the shaft (D).
5. Remove the e-clip securing the clutch gear - 38 tooth (E) to the shaft (D) using a prying tool, and remove
the clutch gear - 38 tooth (E).
6. Disconnect the harness connector to the 2TM/TTM clutch (F) from the bracket (A).
7. Remove the 2TM/TTM clutch (F).
Note: Before re-installing:
– The notch on the 2TM/TTM clutch (F) must be placed over the boss of the bracket (A), as shown in
the figure.
– Ensure the harness does not come in contact with the gears.
Connector
E-ring
E
A
B
F
D
E-ring
B
C
Boss
Knotch
Rear
