Repair information 4-85
4024-XXX

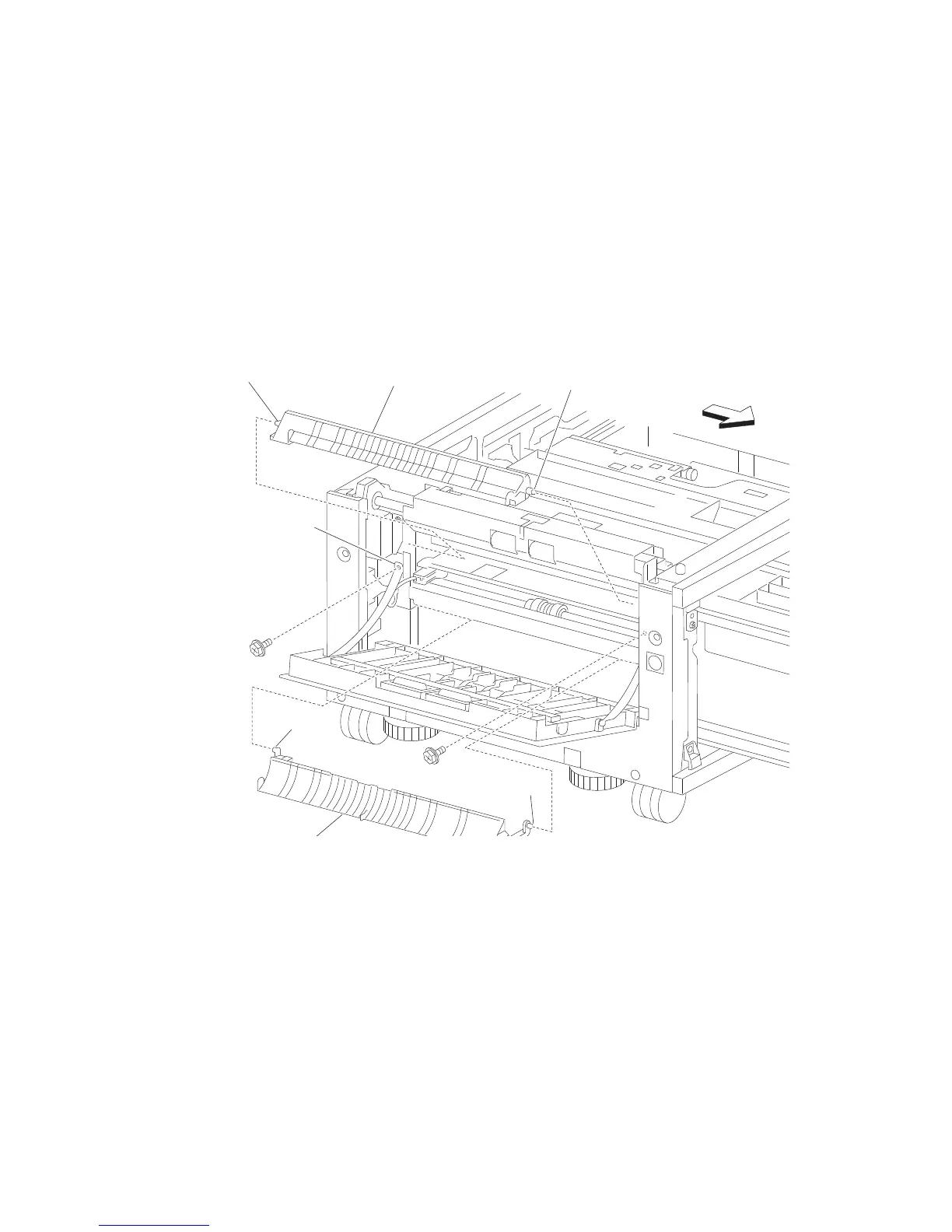

2000-sheet dual input (TTM)—media feed unit assembly removal (tray 3)
1. Pull out the tray 3 assembly.
2. Pull out the tray 4 assembly.
3. Open the 2TM/TTM left door assembly.
4. Remove one screw securing the 2TM/TTM left door support strap (A).
5. Release the bosses on both sides securing the vertical turn guide (B).
6. Remove the vertical turn guide (B).
7. Release the bosses on both sides securing the upper vertical turn guide (C).
8. Remove the upper vertical turn guide (C).
To Next Page
