Lexmark W840 - Duplex Media Center Transport Roll Removal

Repair information 4-191
4024-XXX
Duplex media center transport roll removal
1. Remove the duplex unit assembly. See “Duplex unit assembly removal” on page 4-154.
2. Remove the duplex controller card assembly. See “Duplex controller card assembly removal” on
page 4-181.

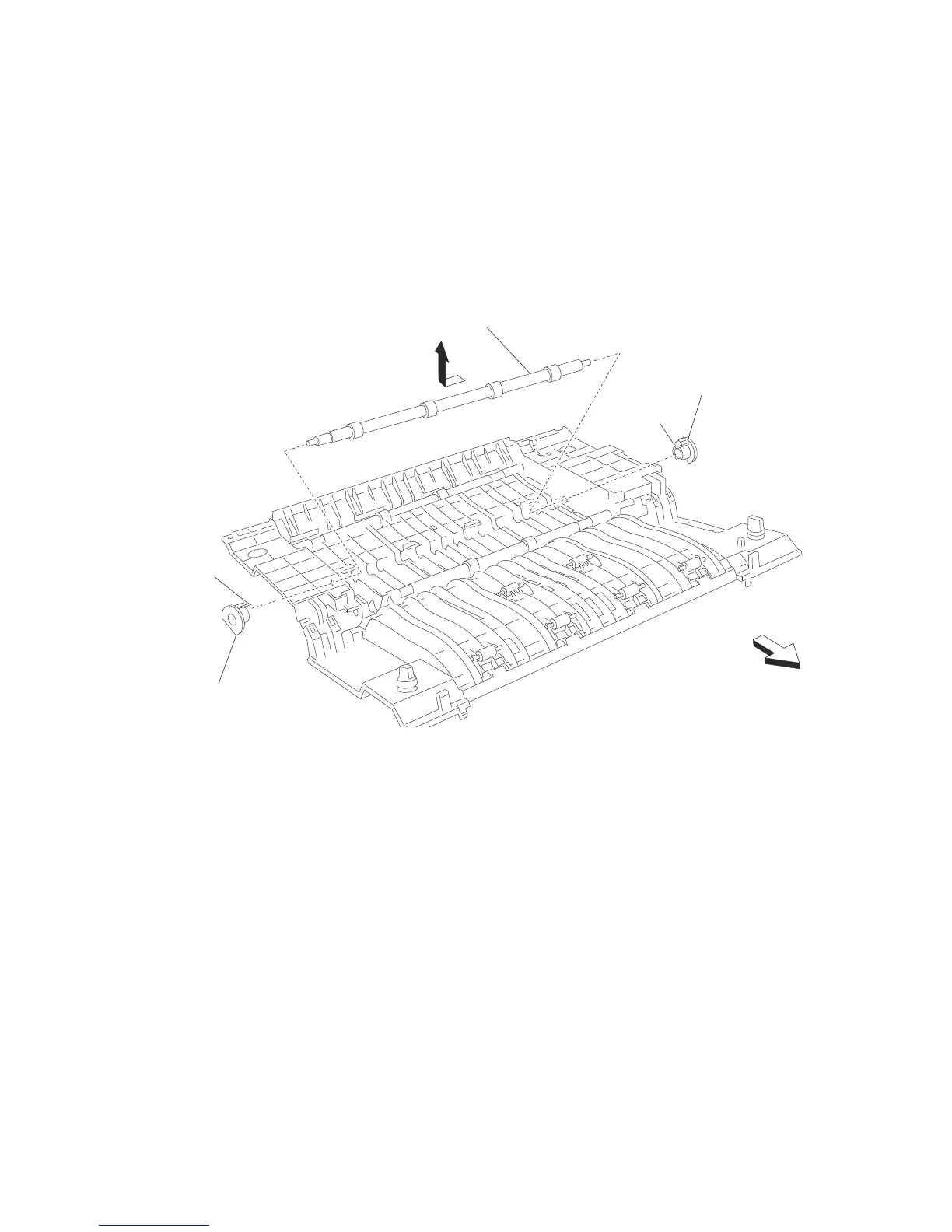

3. Remove the hooks of the two bushings (A) securing the duplex media transport center roll (B) to the duplex
unit assembly.
4. Remove the duplex media center transport roll (B).
Note: When removing the duplex media center transport roll (B), do not touch the rubber surface.
Note: When replacing the duplex media center transport roll (B), do not touch the rubber surface.
B
A
Hook
Right
A
Hook
