4-12 Options Service Manual
4024-XXX

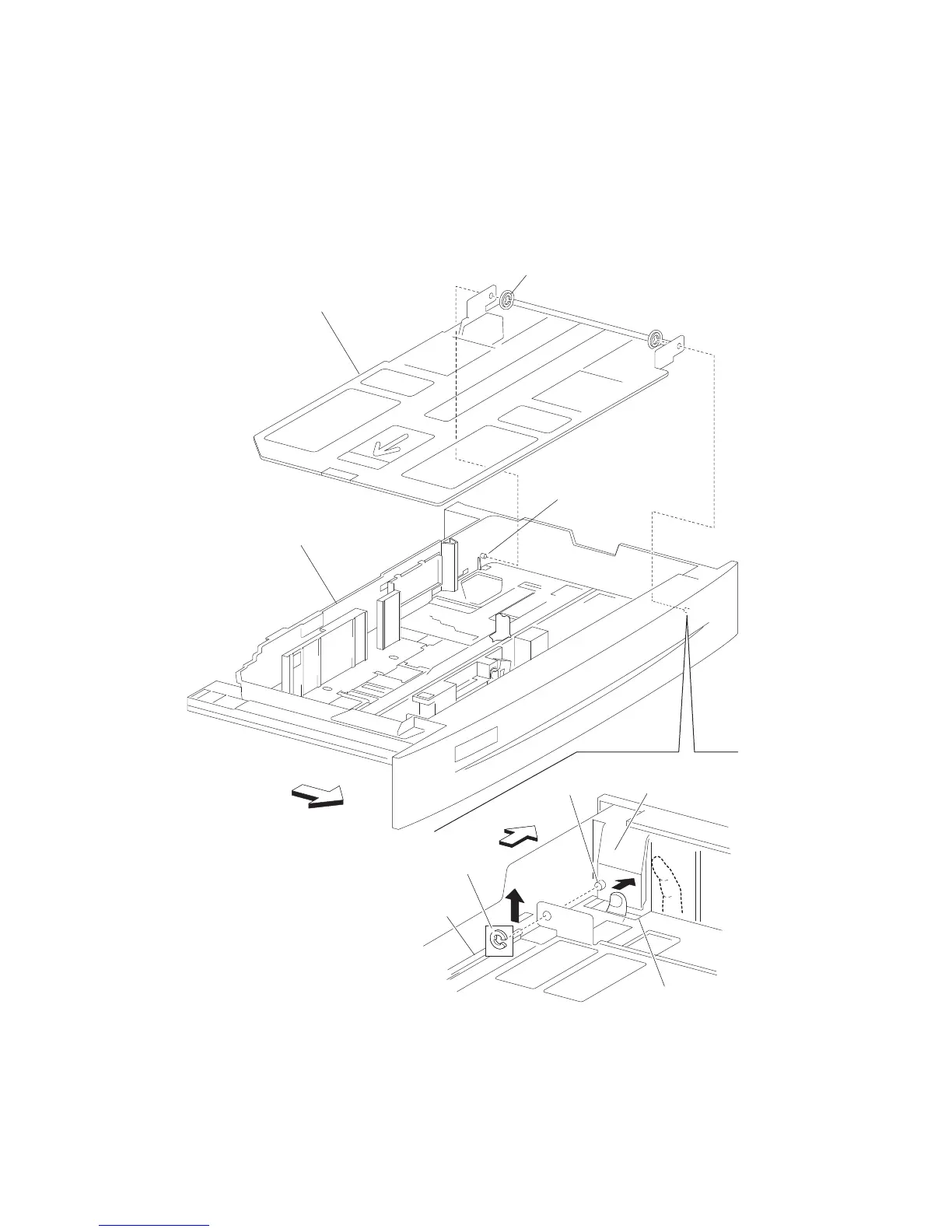

2X 500-sheet drawer (2TM)—media tray guides removal
1. Remove the media tray.
2. Remove the two e-rings securing the metal bottom plate (A) to the media tray using a small prying tool.
3. Push the front hinge point (B) in the direction of the arrow to release the front boss from the metal bottom
plate (A).
4. Remove the metal bottom plate (A) by sliding it off the rear boss.
A
E-ring
Tray
Front
B
Front
E-ring
A
Square hole
Rear boss
Boss
