Lexmark W840 - 500-Sheet Drawer (2 TM)-Media Feed Unit Drive Gear - 13 Tooth Removal

Repair information 4-21
4024-XXX
2X 500-sheet drawer (2TM)—media feed unit drive gear - 13 tooth removal
1. Remove the media feed unit assembly. See “2X 500-sheet drawer (2TM)—media feed unit assembly
removal (tray 3)” on page 4-9 or “2X 500-sheet drawer (2TM)—media feed unit assembly removal
(tray 4)” on page 4-11.

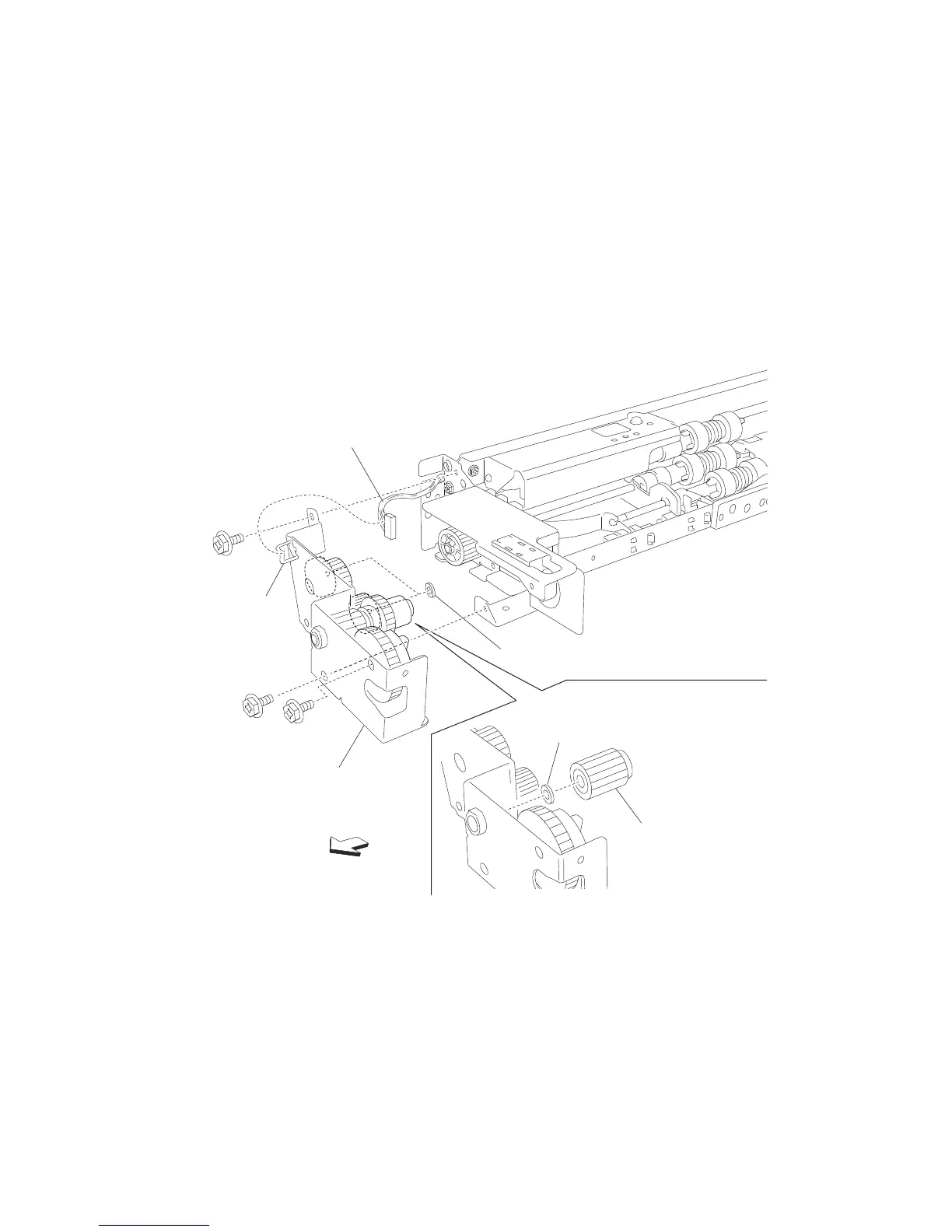

2. Remove the harness from the bracket (A).
3. Remove the three screws securing the bracket (A) to the media feed unit assembly.
4. Remove the bracket (A).
Note: Gears may become detached from the bracket (A).
5. Remove the tray lift one-way clutch assembly. See “2X 500-sheet drawer (2TM)—tray lift one-way gear
clutch assembly removal” on page 4-19.
6. Remove the media feed unit drive gear - 13 tooth (B).
Note: Before re-installing, ensure all gears and washers are securely attached to the bracket (A).
Harness
Clamp
A
Rear
Washer
Washer
B
