Lexmark W840 - 2000-Sheet Dual Input (TTM)-Drive Motor Assembly Removal

Repair information 4-115
4024-XXX

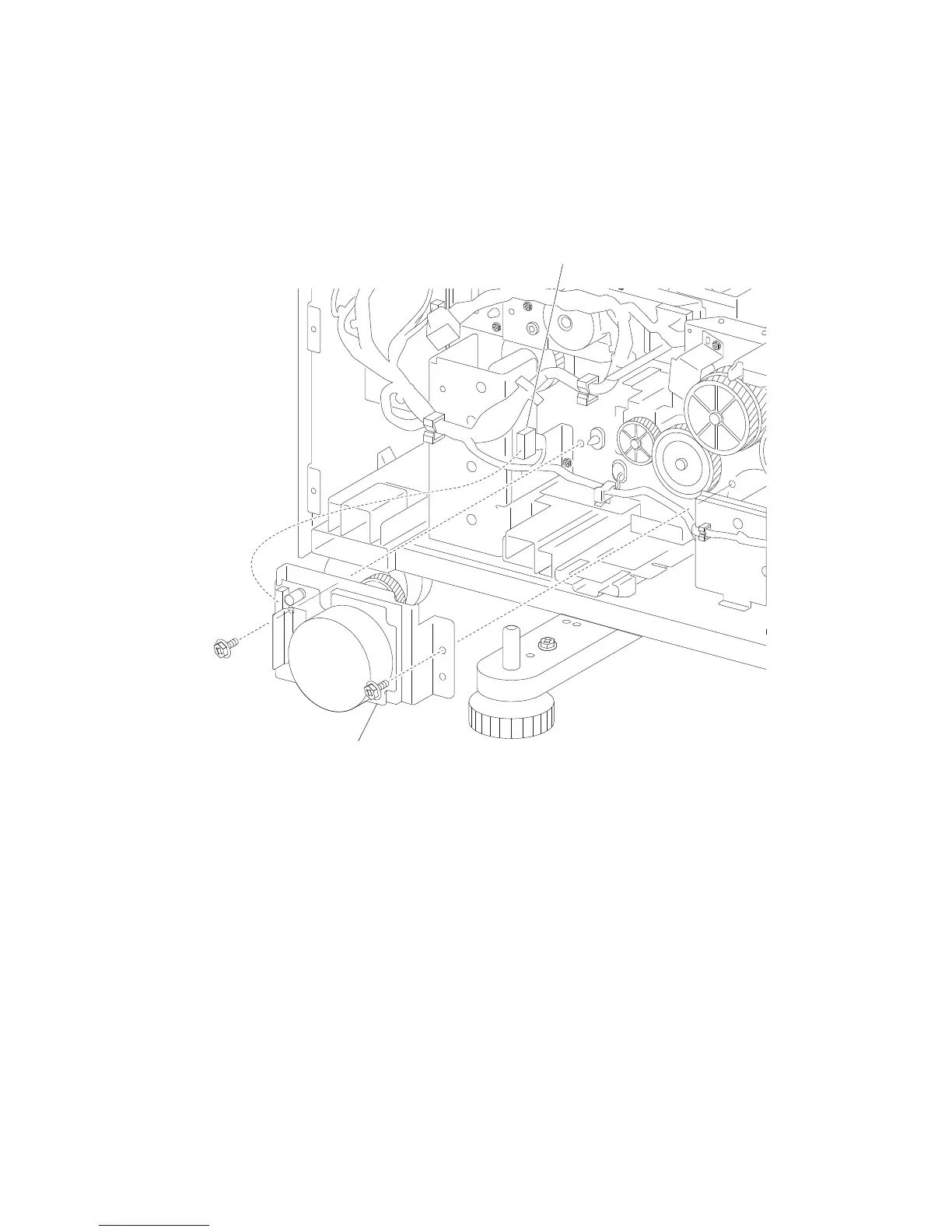

2000-sheet dual input (TTM)—drive motor assembly removal
1. Remove the rear cover. See “2000-sheet dual input (TTM)—rear cover removal” on page 4-51.
2. Disconnect the connector from the 2TM/TTM drive motor (A).
3. Remove two screws securing the 2TM/TTM drive motor (A).
4. Remove the 2TM/TTM drive motor (A).
A
Connector
