Repair information 4-59
4024-XXX

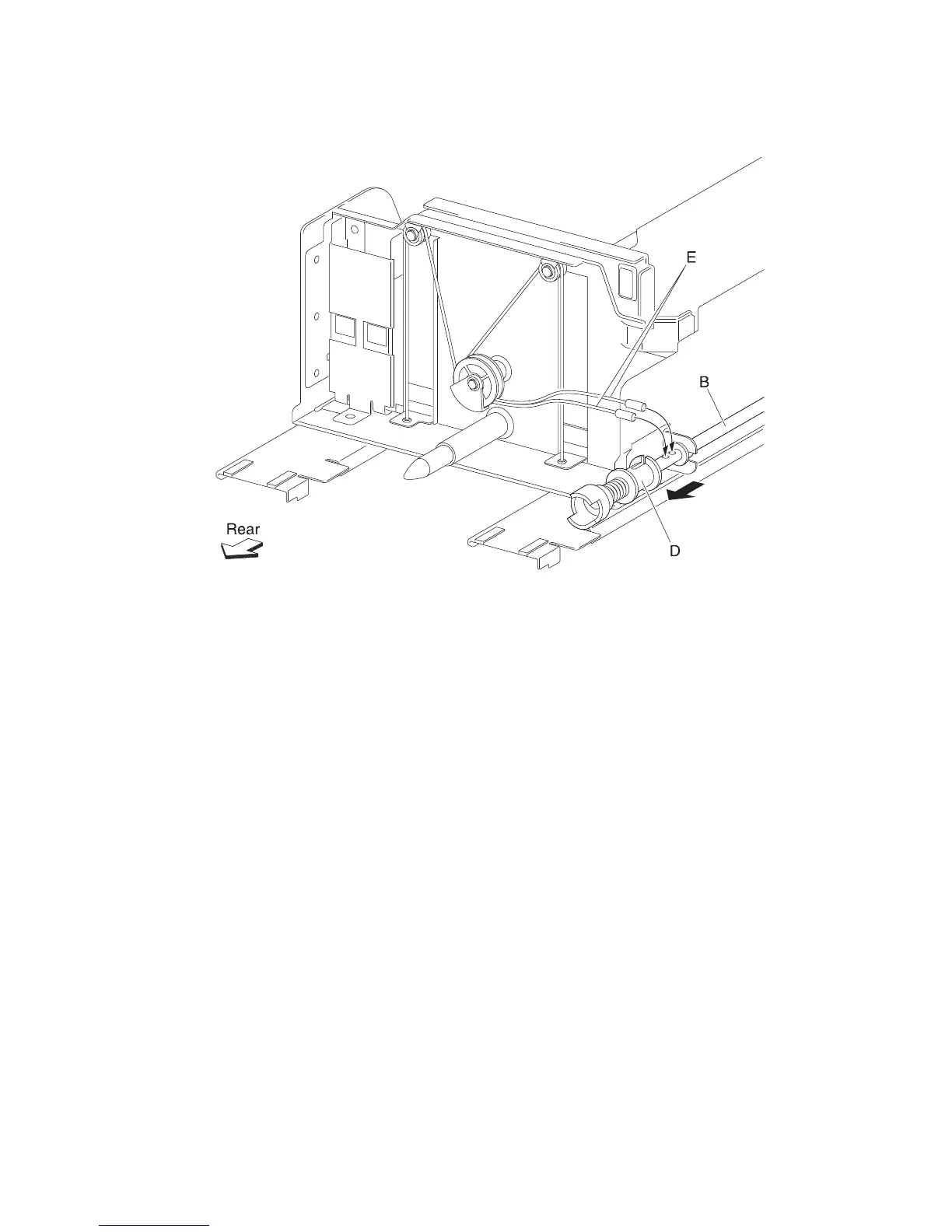

7. Move the rear lift cable pulley (D) toward the rear of the tray to release the two tray 3 rear cables (E) from
the tray lift shaft assembly (B).
8. Remove the two tray 3 rear cables (E) from the tray lift shaft assembly (B).
