1-20 Options Service Manual
4024-XXX

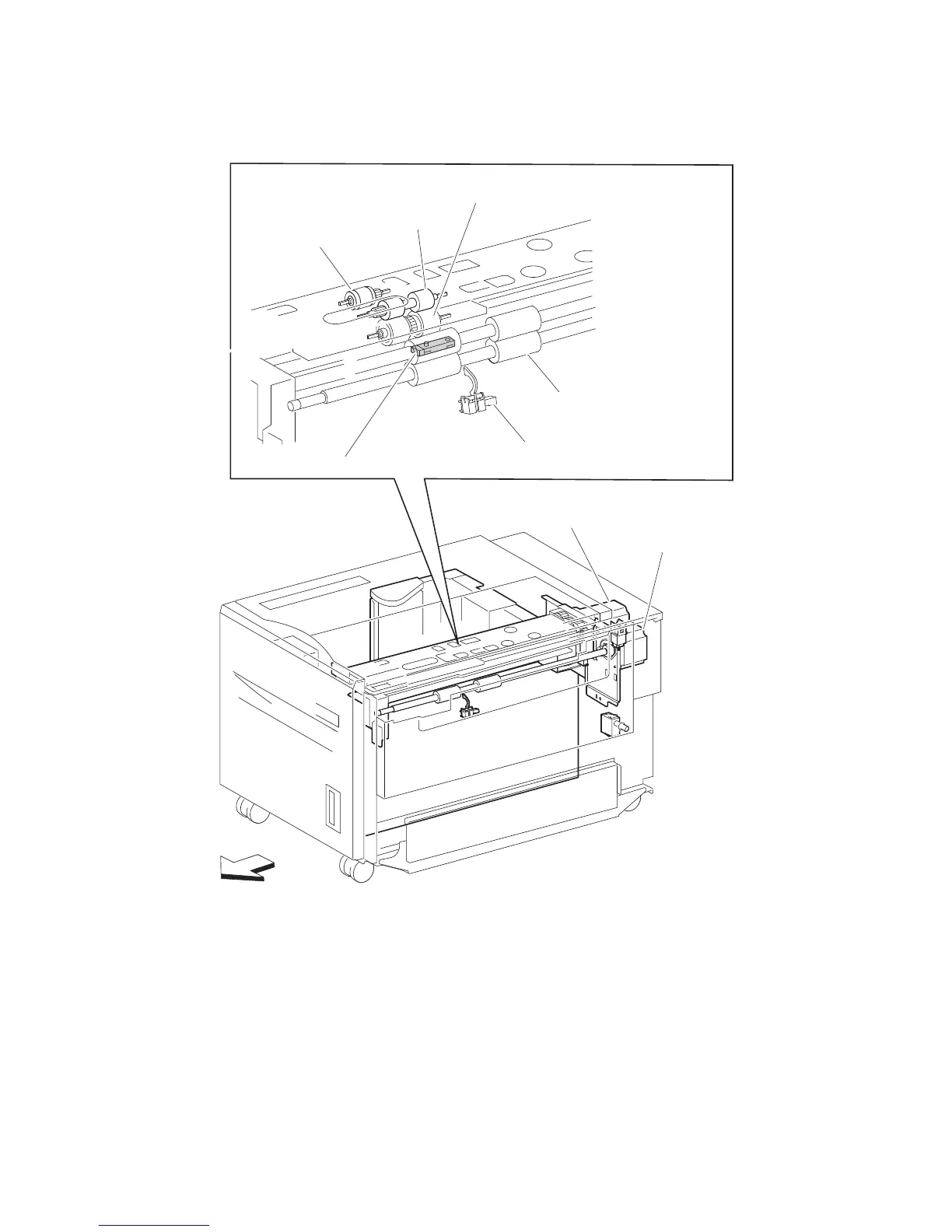

The sensor (tray 5 feed-out) detects the presence of media fed from the tray, and controls the media feed lift
motor stop and the transport motor speed. It also detects media jams to identify media jam zone.
Front
HCF feed lift motor
HCF transport motor
Pick roll
Feed roll
Separation roll
HCF media transport roll asm
Sensor (tray 5 feed-out)
Sensor (pre-feed)
