Repair information 4-183
4024-XXX

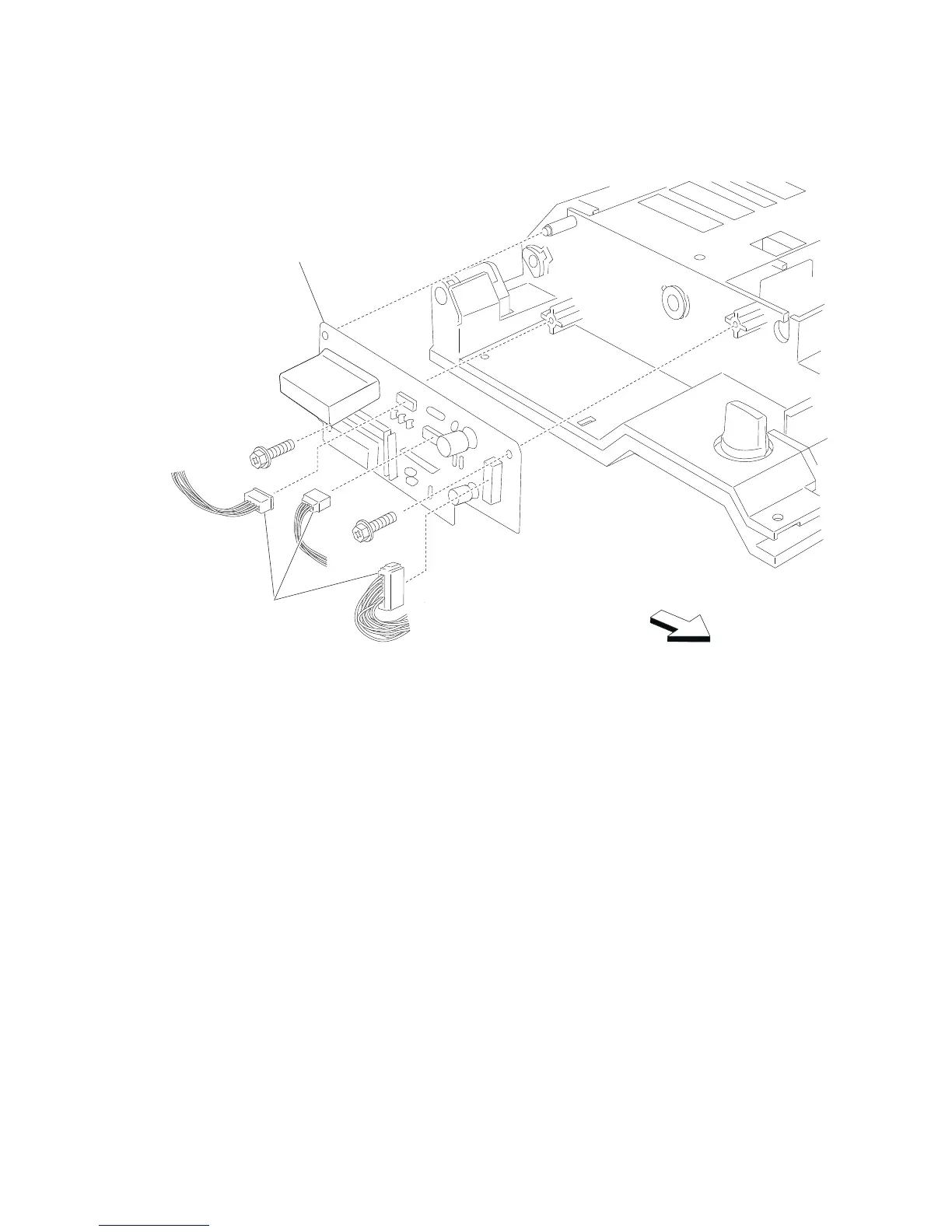

8. Disconnect all the connectors to the duplex controller card assembly (D).
9. Remove the two screws securing the duplex controller card assembly (D) to the duplex unit assembly.
10. Remove the duplex controller card assembly (D).
Connectors
D
Right
