4-186 Options Service Manual
4024-XXX

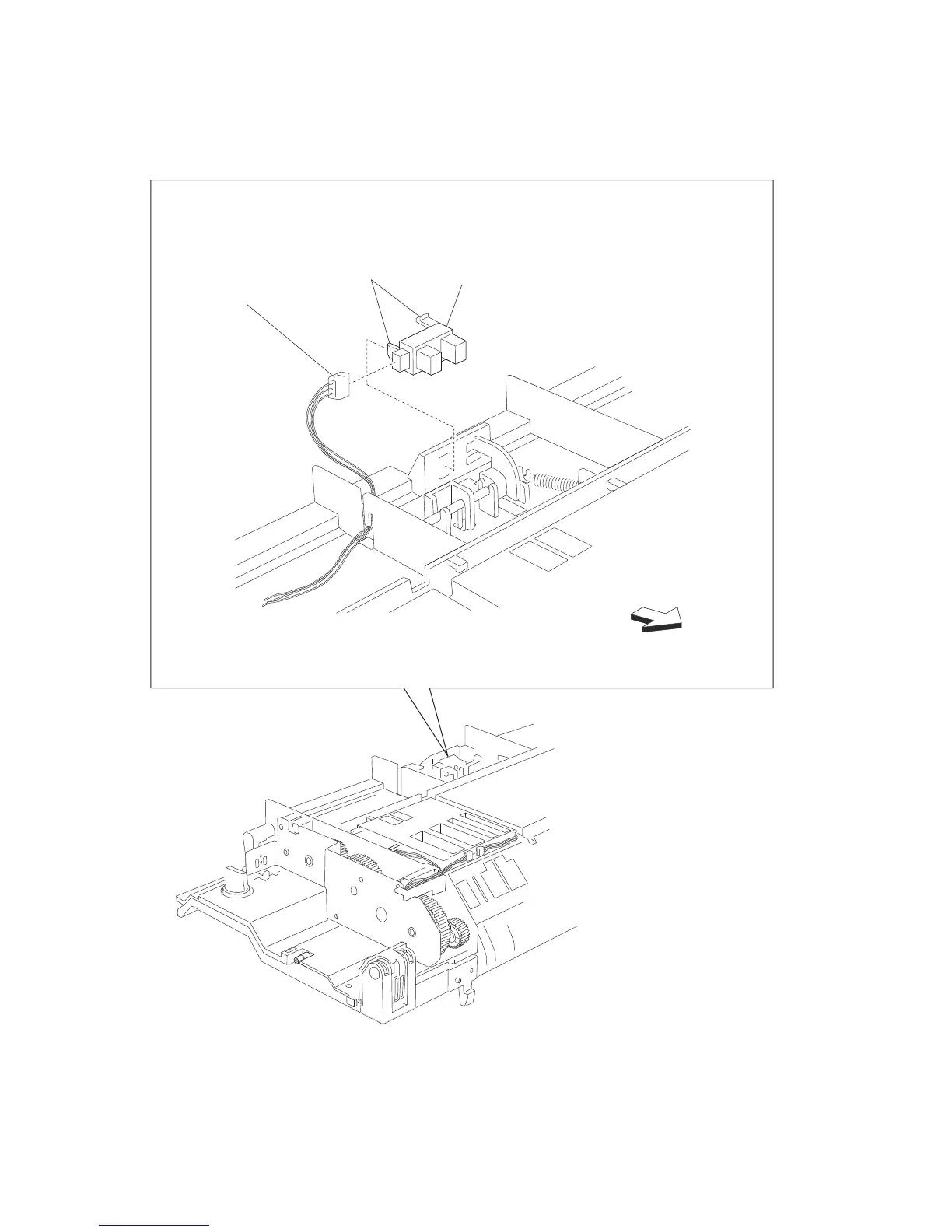

8. Disconnect the connector of the harness from the sensor (duplex wait) (D).
9. Release the hooks securing the sensor (duplex wait) (D) to the duplex unit assembly.
10. Remove the sensor (duplex wait) (D).
Connector
D
Hooks
Left
