Resilience to failure (redundancy)
21
XL8 Control Centre
Operator Manual
Control and
audio data
Audio data
Control data
Router
Monitor
FOH
XL8 Control Centre
Internal bay
processor
Dual redundant
internal router
Dual redundant
internal master
controller
Local I/O units
Mic
splitters
(shared)
This diagram gives a
more detailed
illustration of the
interconnections in a
standard FOH and
stage monitor set up.
N + 1 redundant
spare
N + 1 redundant
spare DSP
unit
DSP
units

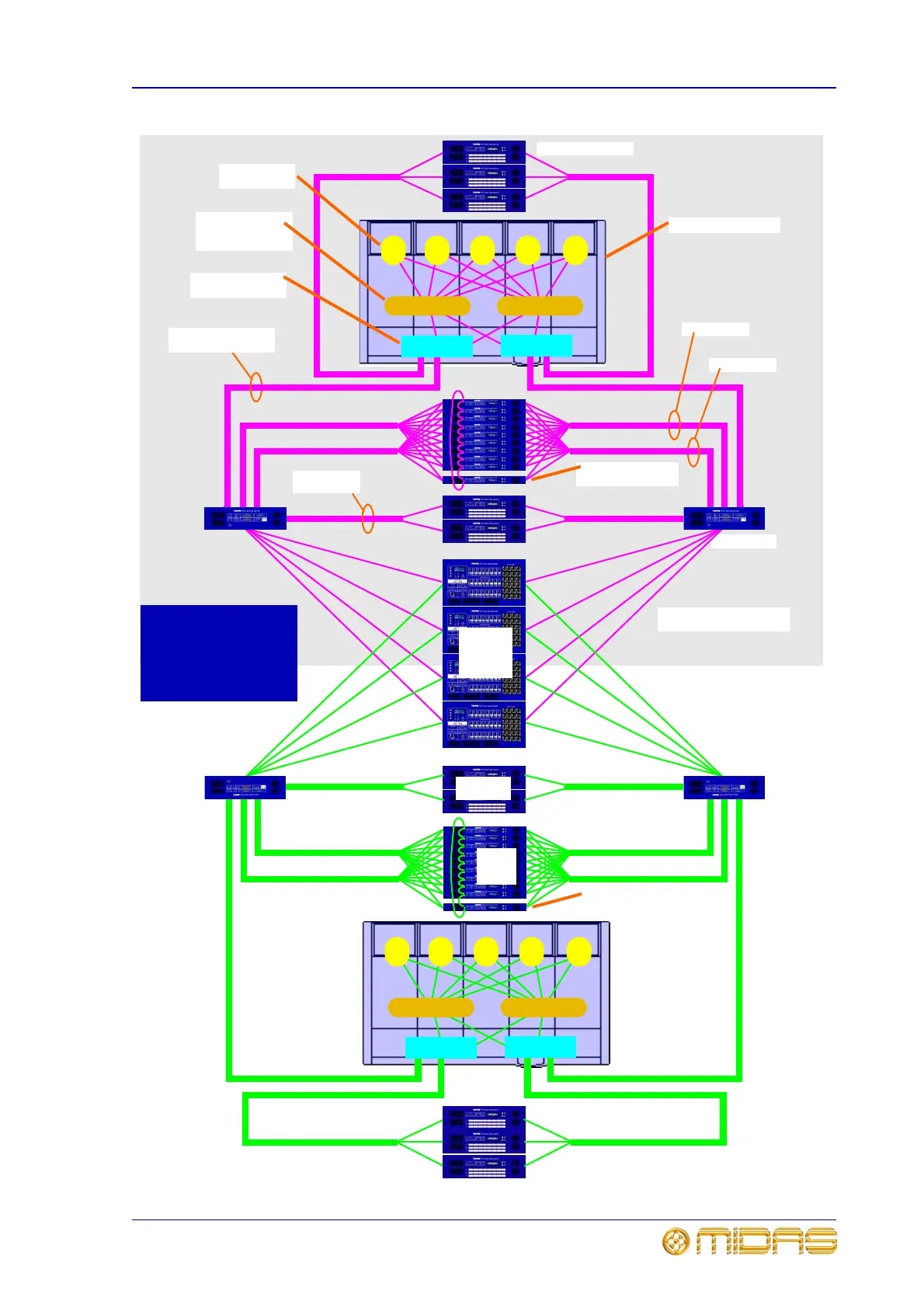

Figure 4: System interconnections
Cat6/optical
‘snake’
I/O units
44
46
