Chapter 7 Adjustment
7-16

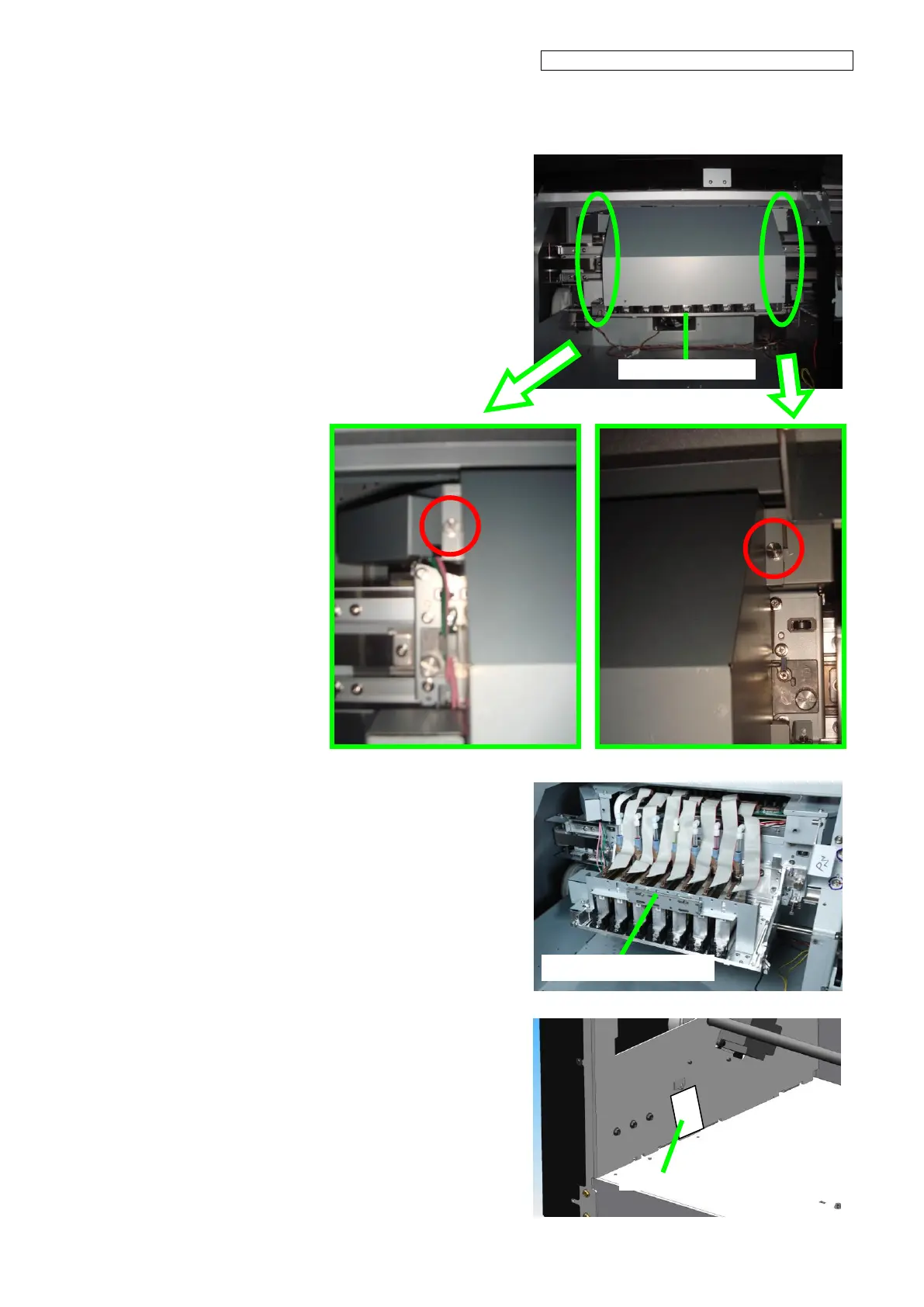

(3) Open the COVER(L)ASSY-MW and
remove the carriage cover.
Loosen the screw located on both
sides (shown in the red circles in the
picture below) and pull the carriage
cover.
*The screws cannot be removed.
(4) Remove the
CARRIAGE-WEIGHT-ASSY.
Remove the wiping position
adjustment pin from the bag hooked
to the side plate of the maintenance
area.
The adjustment pin is in the bag.
To Next Page
