OKI Data Infotech Corporation CONFIDENTIAL
Chapter 7 Adjustment
7-17

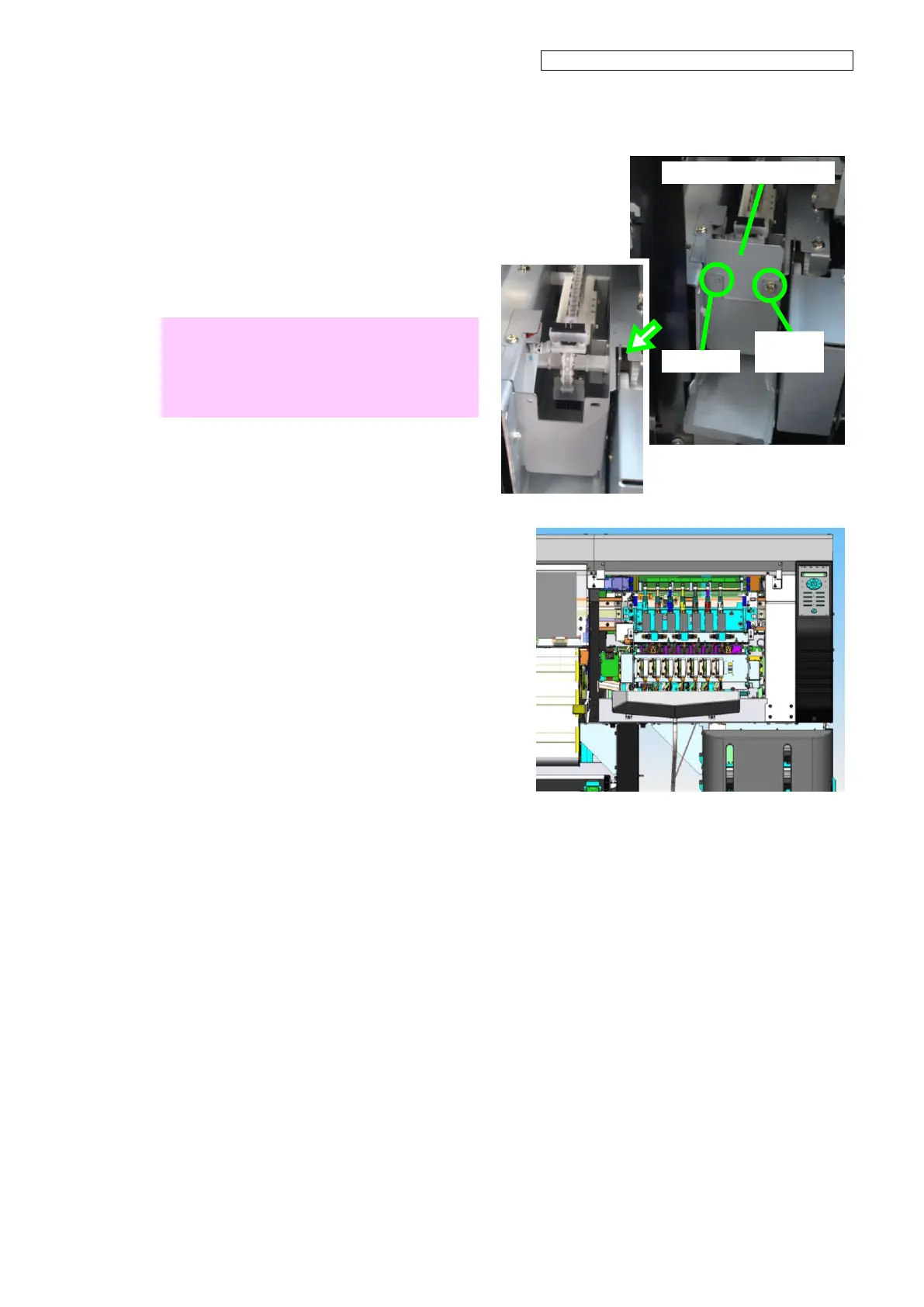

(5) Remove the wiper cleaning liquid
bottle and the wiper sponge.
Remove the
BRACKET(WIPE)-GUARD.
Remove the wiper sponge then the
BRACKET(WIPE)-GUARD.
Notes
 Do not spill the liquid inside the wiper
sponge.
 Be sure to insert the protrusion when
installing the BRACKET(WIPE)-GUARD.
(6) Close the COVER(CENTER)-F. The
carriage returns to the home position.
(The figure to the right shows the
configuration.)
BRACKET(WIPE)-GUARD
Protrusion
Securing
screw
