Chapter 7 Adjustment
7-19

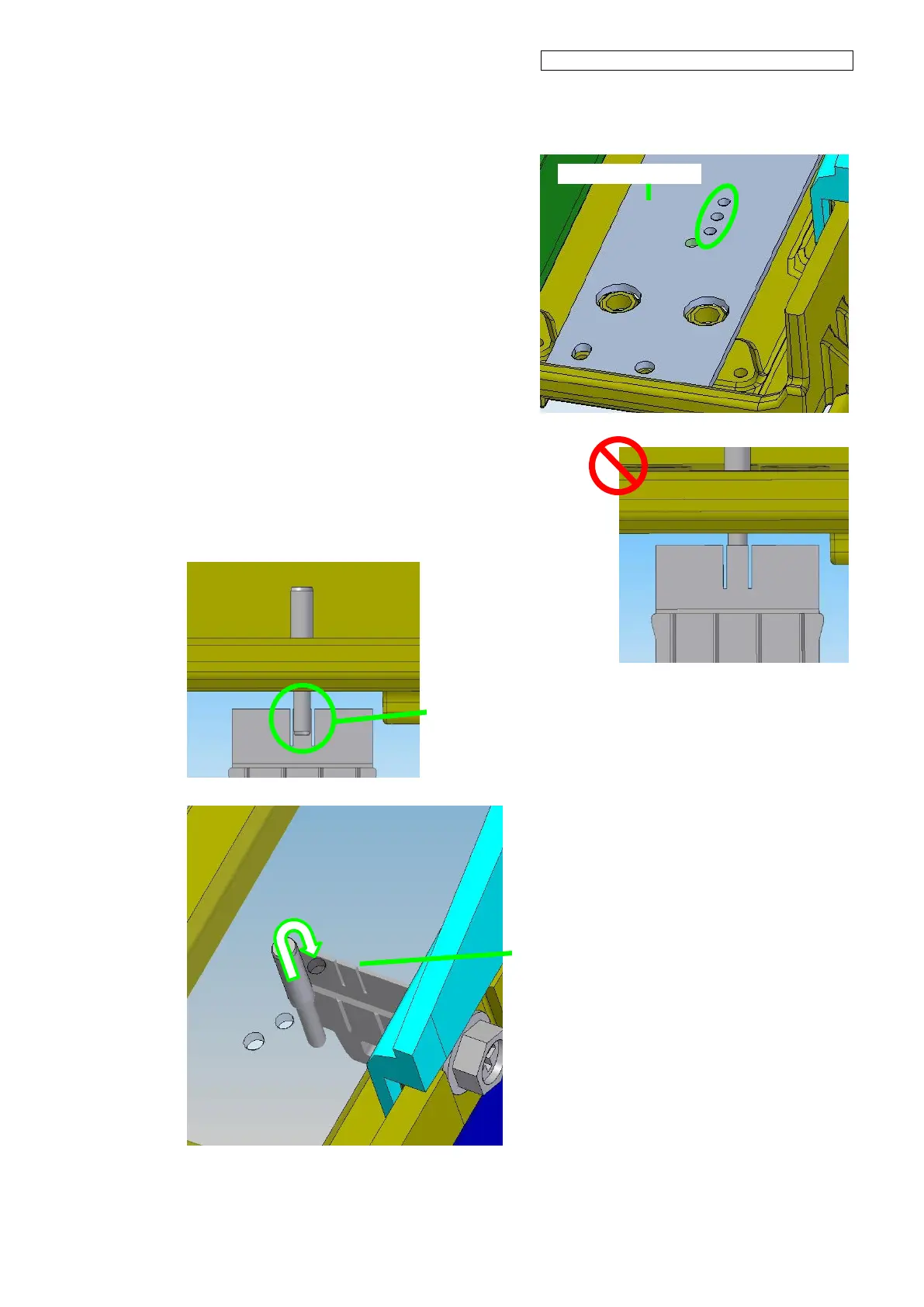

7. Insert the wiping position adjustment pin
into the HEAD-BASE-WEIGHT of the
head base.
Insert the wiping position adjustment pin
in one of the three holes indicated with a
circle in the figure to the right.
Select the hole where to insert the pin
with the procedure below.
(1) From the wiping unit's front side,
check the relationship between the
wiper blade and the wiping position
adjustment pin.
(2) Select the holes where:
- The inserted pin comes first in
front of the blade.
(3) If two or three holes are appropriate,
select one hole where:
- The pin and the wiper blade are
the closest.
HEAD-BASE-WEIGHT
Insert in a different hole if the pin comes
behind the wiper blade.
正面から見た時に、調整
ピンが手前に見えるよう
に調整ピンを差す
When looking from the
wiping unit's from, the pin
comes in front of the wiper
blade.
Insert in the hole where the pin
and the wiper blade are the
closest.
