1-Bin Tray BN1040 (D574-59)
D0CA/D0C9/D0C8/D0CB 2-76 SM

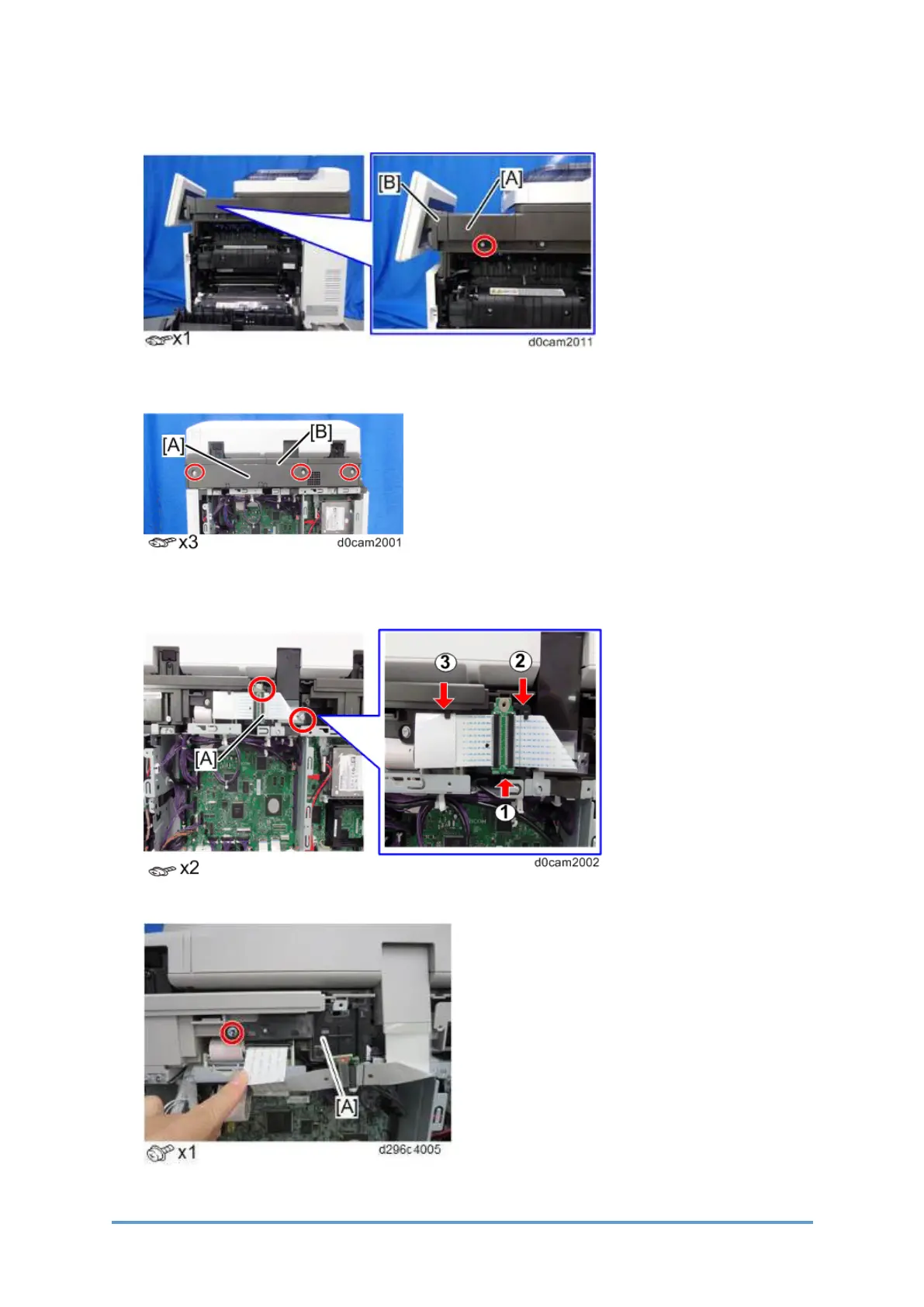

3. Remove the front right cover [A] and the hinge cover [B].
4. Remove the scanner rear cover [A] and scanner rear small cover [B].
5. Release two screws and three tabs for attaching the relay board (PCB12) [A] and FFC, to
release the FFC.
6. Remove the FFC fixing bracket [A] on the back side of the FFC.
