Dehumidification Heater (PFU)
D0CA/D0C9/D0C8/D0CB 2-134 SM
[A]: M3×12 (included in this kit)
[B]: M3×6 (included in this kit)
[C] (Upper): Existing screws (×2) (Screws remove in step 7)
[C] (Lower): M3×6 (included in this kit)
10. Reassemble the mainframe and the paper feed unit.
Joining Two Optional Paper Feed Units

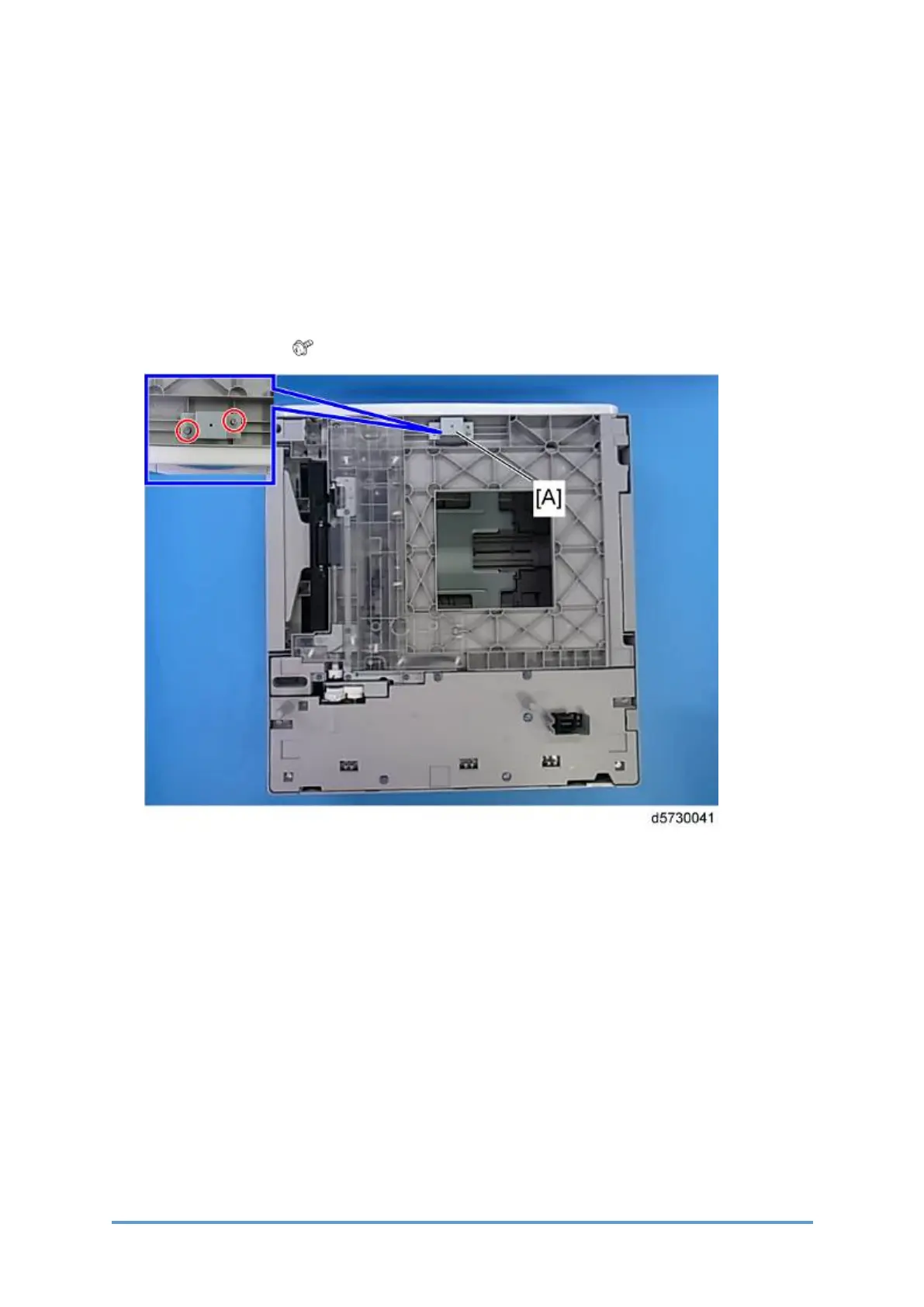

1. Attach the joint bracket (front center) [A] to the 2nd paper feed unit that will be installed at
the lowest position. (
:Tapping × 2 (included in this kit))
2. Put the 1st optional paper feed unit on the 2nd paper feed unit that is fitted with the bracket
[A] in step 1.
3. Remove the paper trays.
