Bypass
D0CA/D0C9/D0C8/D0CB 4-182 SM

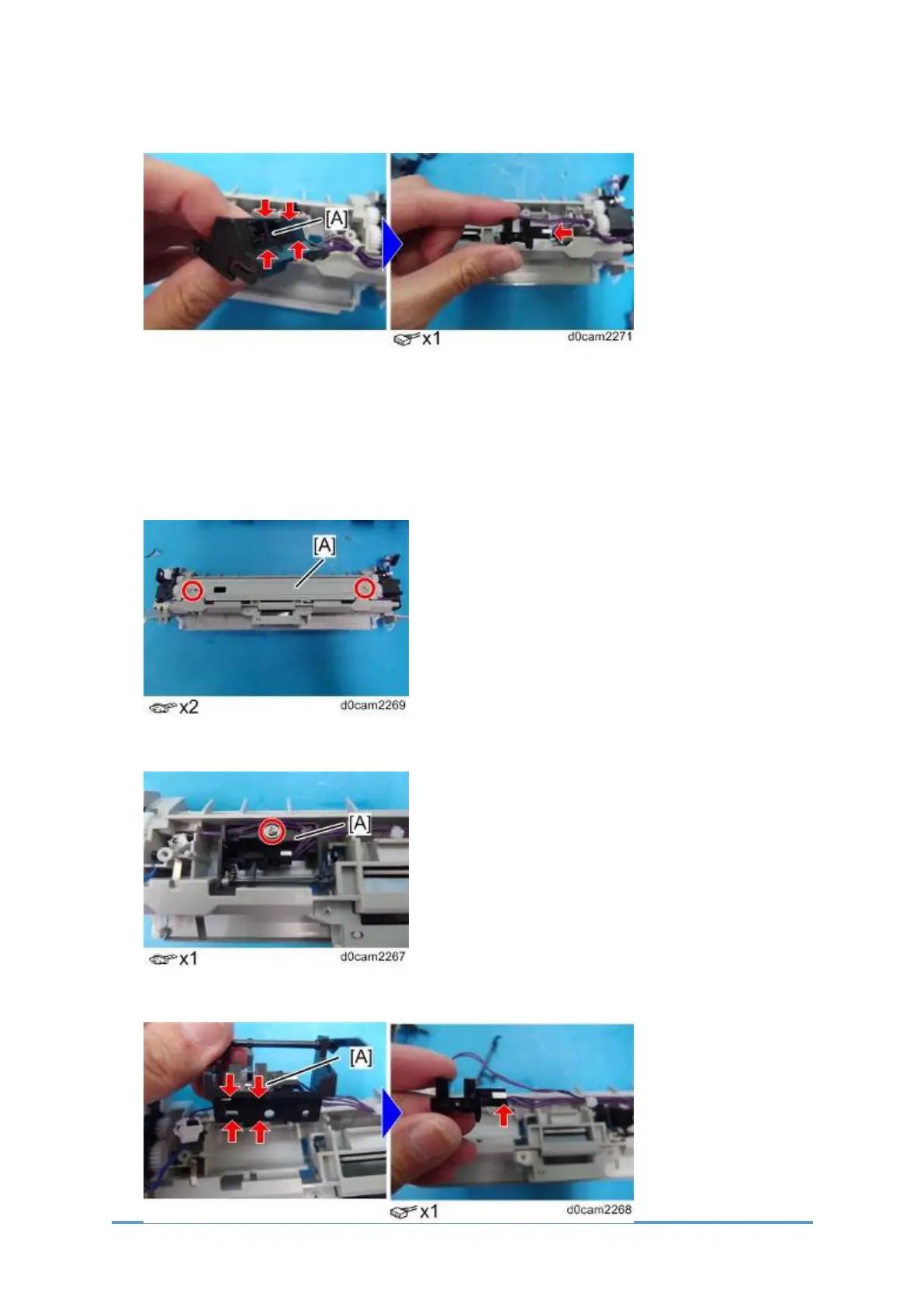

5. Remove the paper end sensor (bypass) (S6) [A]. (Hooks × 4)
4.16.4 BYPASS PAPER WIDTH SENSOR (S5)
1. Remove the duplex unit.(Duplex Unit)
2. Remove the bypass feed unit. (Bypass Feed Unit)
3. Remove the bracket [A].
4. Remove the bypass paper width sensor (S5) with the holder [A].
5. Remove the bypass paper width sensor (S5) [A]. (Hooks × 4)
