Internal Finisher (IM C400SRF Only)
SM 4-95 D0CA/D0C9/D0C8/D0CB
&
Adjustment
4.8.10 SHIFT ROLLER HP SENSOR (S37)
1. Remove the internal finisher. (Removing the Internal Finisher)

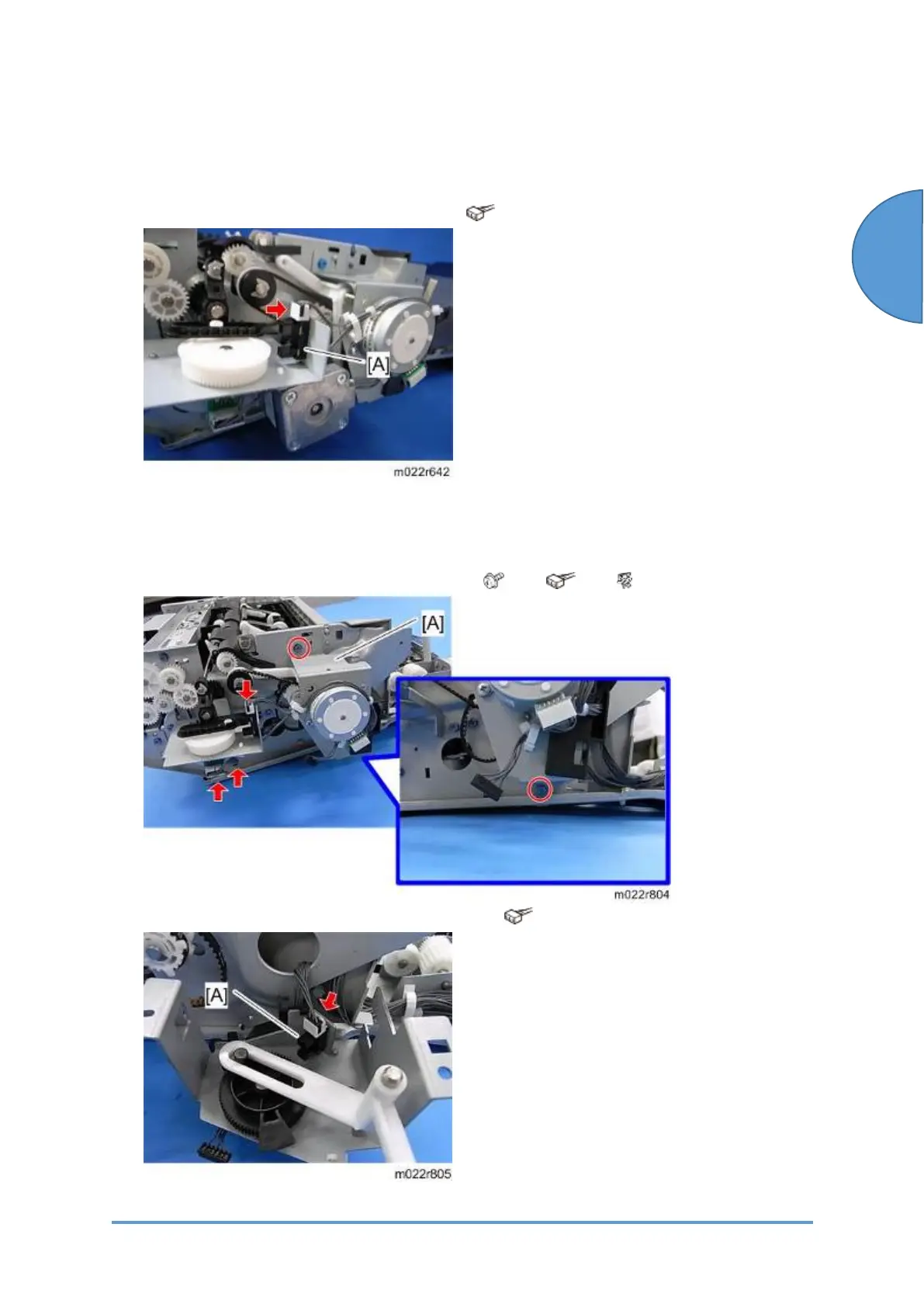

2. Remove the shift roller HP sensor (S37) [A] ( x 1).
4.8.11 GATHERING ROLLER HP SENSOR (S38)
1. Remove the internal finisher. (Removing the Internal Finisher)
2. Remove the gathering roller motor bracket [A] ( x 2, x 2, x 1).
3. Remove the gathering roller HP sensor (S38) [A] ( x 1).
