Replacement and Adjustment
SM 8-7 D0CA/D0C9/D0C8/D0CB
8.1.4 SPEAKER
1. Remove the operation panel unit. (Operation Panel)
2. Remove the bottom cover (Main Controller Board).

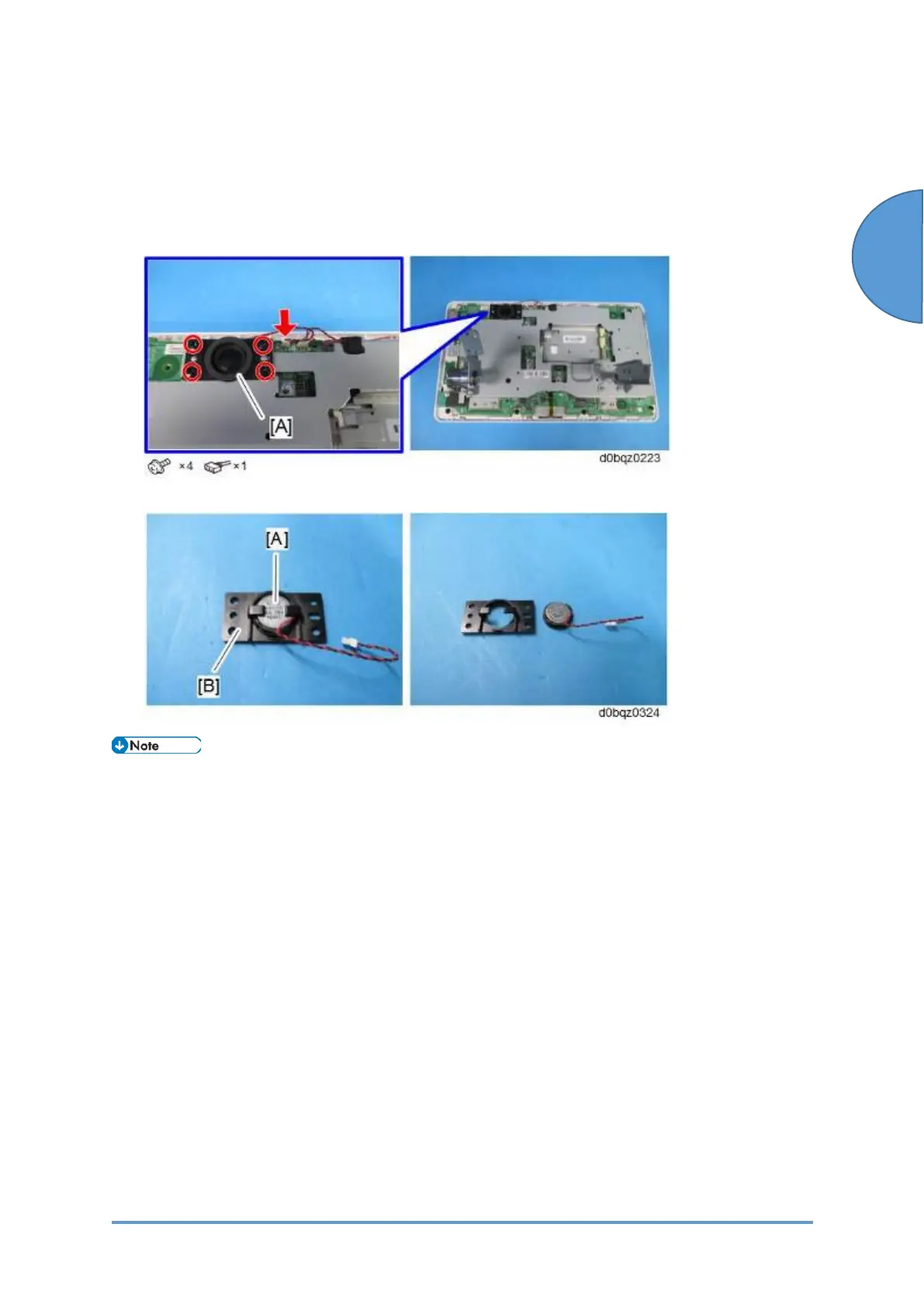

3. Remove the speaker [A] together with the speaker holder.
4. Remove the speaker [A] from the speaker holder [B].
• After replacing the speaker, perform the following check.
• Speaker Check (Speaker Check)
To Next Page
