Image/Paper Transfer
SM 4-125 D0CA/D0C9/D0C8/D0CB
&
Adjustment

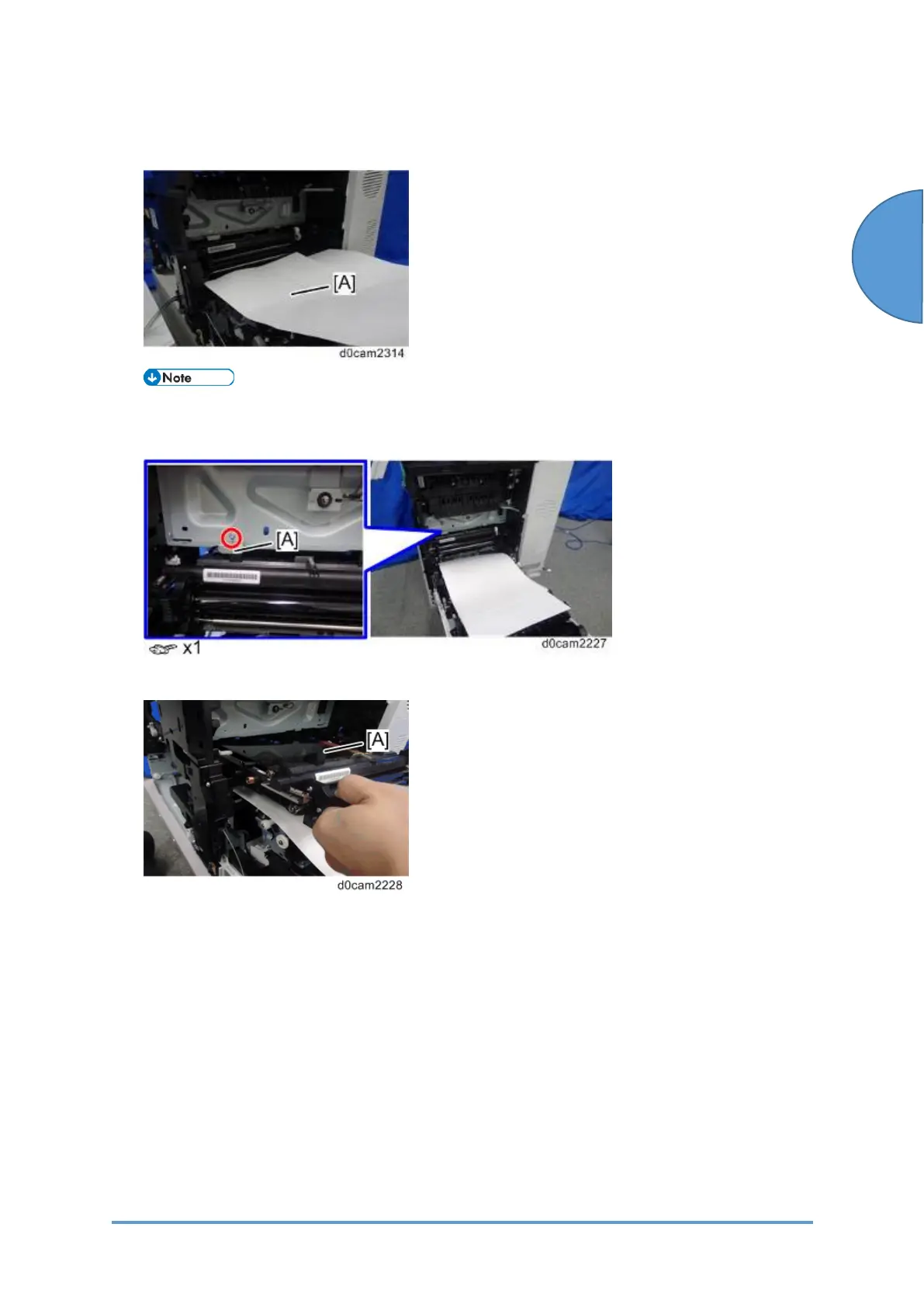

4. Put a sheet of paper [A] on the duplex unit with the short edge of the paper pointing
towards the ITB unit.
• This is to protect the paper transfer unit from toner when removing the ITB unit.
5. Remove the ITB unit securing bracket [A].
6. Pull out the ITB unit [A].
After Replacing the Image Transfer Belt Unit
Do the following after replacing the ITB unit.
1. Enter the SP mode.
2. Set SP1-001-031 (Leading Edge Registration Std. Measure: On/Off) to “1”.
3. Execute SP2-111-004 (Forced Line Position Adj. Mode d).
4. SP values from SP1-001-033 to 040 (Leading Edge Registration Offset Standard: 1 to 8)
are updated by the above steps.
5. Reset SP1-001-031 to “0”.
6. Exit from the SP mode.
7. Turn the main power OFF and ON.
