8.2.2 PANEL COMPONENTS/SCREEN LAYOUT

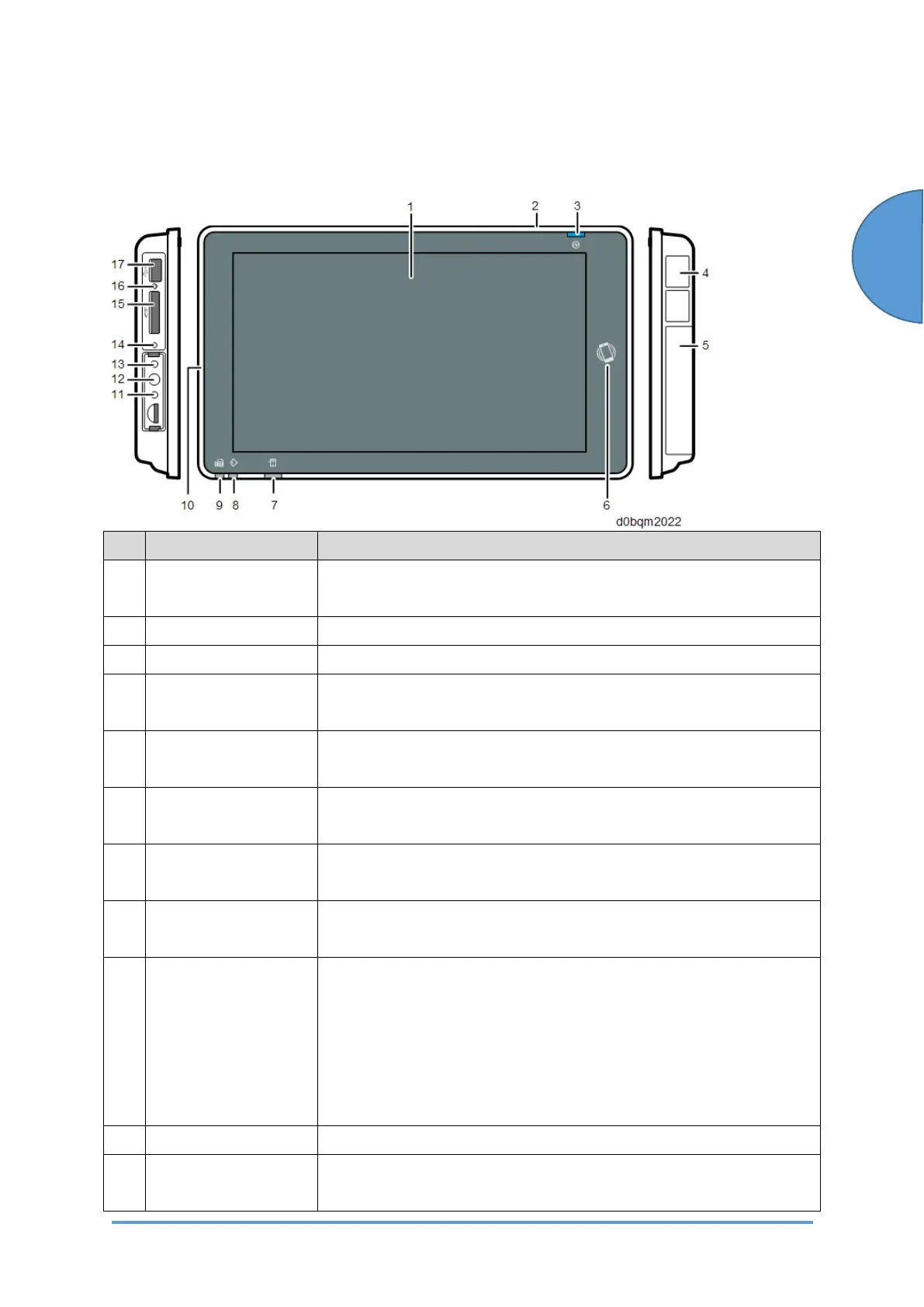

Components of the Control Panel
No. Name Description
1 Display panel Displays icons for functions and applications. Displays the
operation screens, operation keys and other information.
2 Speaker Produces the operation and warning sounds.
3 Main power indicator Indicates power OFF/ON, and energy saving status.
4 USB slot for digital
cameras
You can connect the optional numeric keypad and digital cameras.
5 USB slot for NFC
card readers
You can connect the authentication card reader/writer and devices
supporting near-field communication (NFC).
6 NFC tag Used to connect the machine and a smart device with the RICOH
simple input and output.
7 [Check Status]
indicator
Indicates system status.
8 Data In indicator Flashes when the machine receives data from a printer driver or
LAN-Fax driver.
9 Fax indicator Indicates fax status.
• During communication: Flashes
• When fax documents have been received using Substitute
Reception: Lights
• When the machine has received a confidential fax document:
Lights
10 Microphone There is currently no function that uses this.
11 Extended Feature
key (EX3)
Used for system maintenance, such as control panel self-check.
