Internal Finisher (IM C400SRF Only)
SM 4-89 D0CA/D0C9/D0C8/D0CB
&
Adjustment
4.8.5 SHIFT ROLLER MOTOR (M19)
1. Remove the internal finisher. (Removing the Internal Finisher)
2. Remove the paper exit motor. (Paper Exit Motor (M17))

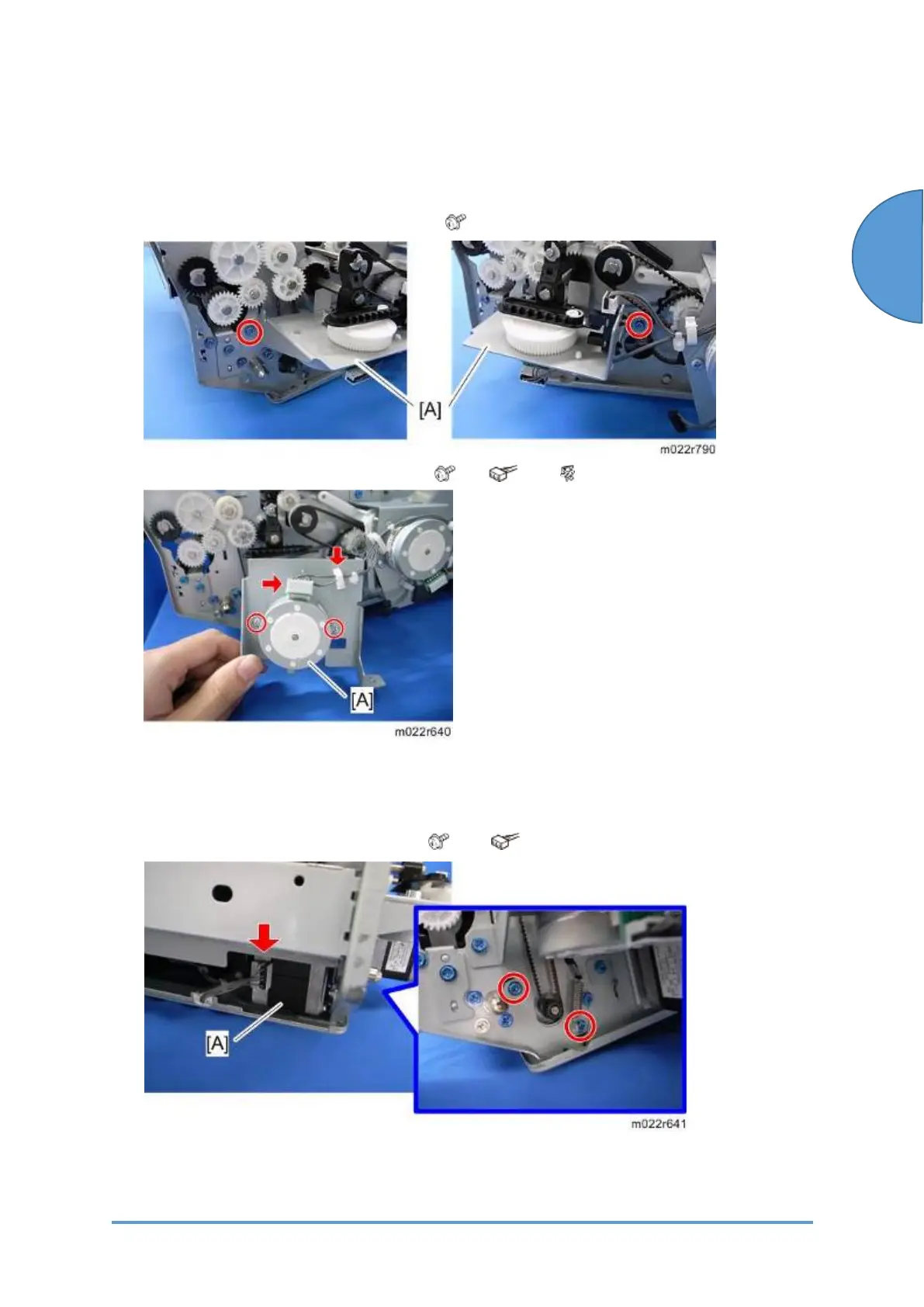

3. Remove the shift roller motor bracket [A] ( x 2).
4. Remove the shift roller motor (M19) [A] ( x 2, x 1, x 1).
4.8.6 TRANSPORT MOTOR (M16)
1. Remove the internal finisher. (Removing the Internal Finisher)
2. Remove the transport motor (M16) [A] ( x 2, x 1).
