2.1.3 MACHINE SPACE REQUIREMENTS
• This machine uses high voltage power sources and can generate ozone gas. High
ozone density is harmful to human health. Therefore, the machine must be installed in
a well-ventilated room.

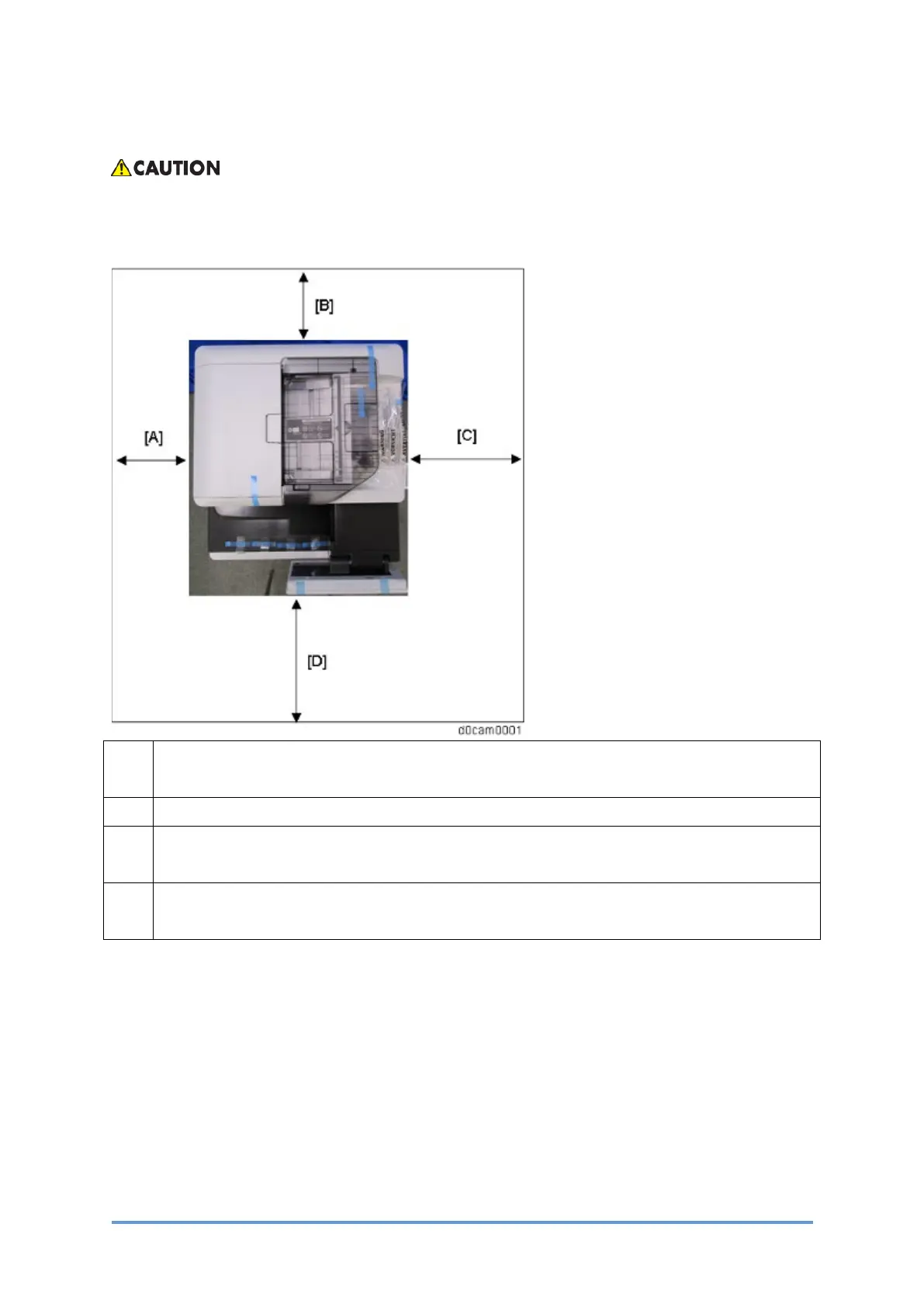

A IM C300 series / IM C400F: Over 7 cm (2.75")
IM C400SRF: Over 5 cm (1.96")
B Over 10 cm (3.93")
C IM C300 series / IM C400F: Over 40.2 cm (15.82")
IM C400SRF: Over 52 cm (20.47")
D IM C300 series: Over 33.3 cm (13.11")
IM C400 series: Over 32 cm (12.59")
Put the machine near the power source with the clearance shown above.
