Ricoh IM C400F

Fusing
SM 7-77 D0CA/D0C9/D0C8/D0CB
Detailed
Descriptions

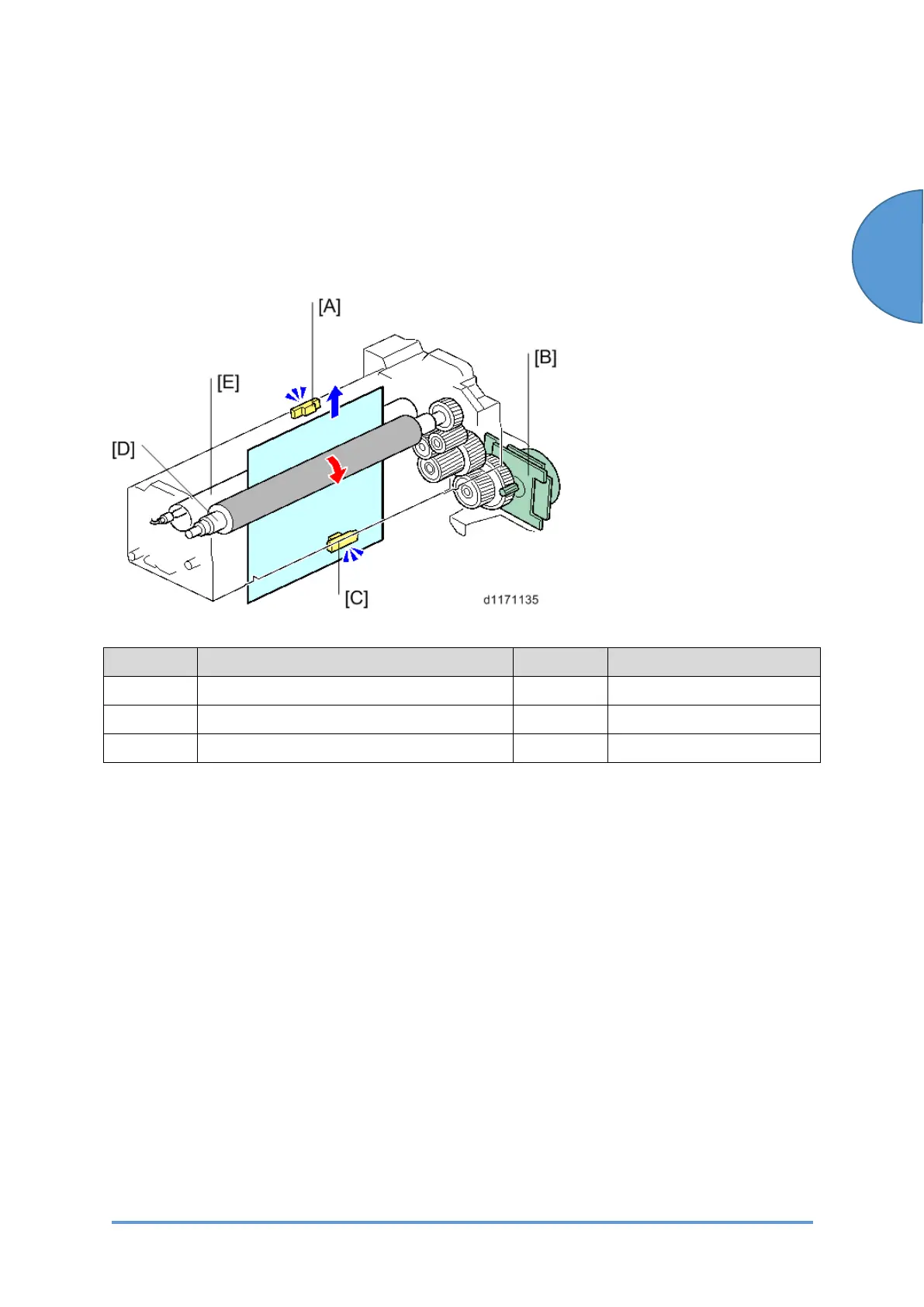

7.11.4 FUSING DRIVE
The fusing motor (M13) [B] drives the pressure roller [D] through gears.
The pressure roller [D] drives the fusing sleeve belt [E].
The fusing entrance sensor (S3) [C] and fusing exit sensor (S8) [A] detect paper jams around/in
the fusing unit.
Callout Item Callout Item
[A] Fusing Exit Sensor (S8) [D] Pressure Roller
[B] Fusing Motor (M13) [E] Fusing Sleeve Belt
[C] Fusing Entrance Sensor (S3) - -
