Dehumidification Heater (main unit)
D0CA/D0C9/D0C8/D0CB 2-120 SM

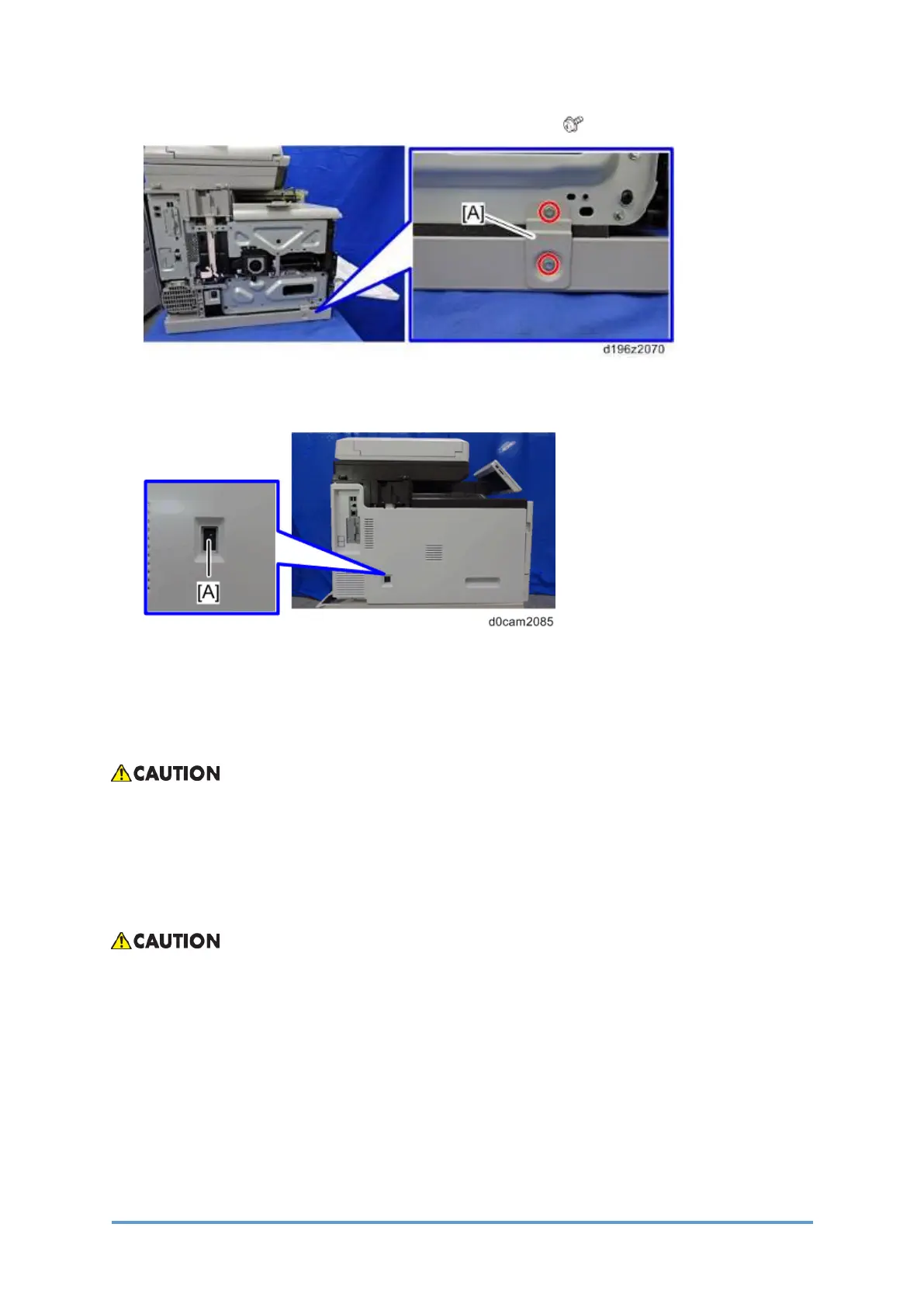

21. Attach the securing bracket [A] at the left of the machine. ( × 2)
22. Attach the left cover.
23. Turn ON the switch[A].
2.18.4 INSTALLATION PROCEDURE FOR IM C400 SERIES
• Installation Procedure for b/b-finisher
• Do not lift the machine with any optional paper feed units attached
If the machine already has one or more optional paper feed unit(s) attached, be sure to
disconnect the machine and paper feed unit(s), and lift them up separately when
moving/transporting. Otherwise, the handle of the paper feed unit will break due to the
mainframe’s weight, and it can cause an injury.
• Turn OFF the main power and unplug the power cord from the wall socket. If the main
power is not turned OFF before installing, an electric shock or malfunction might occur.
• Do the following procedure to prevent the harnesses from being damaged.
• Check that harnesses are not damaged or pinched after installation.
1. Remove the rear cover. (Rear Cover)
2. Remove the rear bottom cover.(Rear Bottom Cover)
