Page Keeper Type M28 (D3DQ-17)
D0CA/D0C9/D0C8/D0CB 2-94 SM

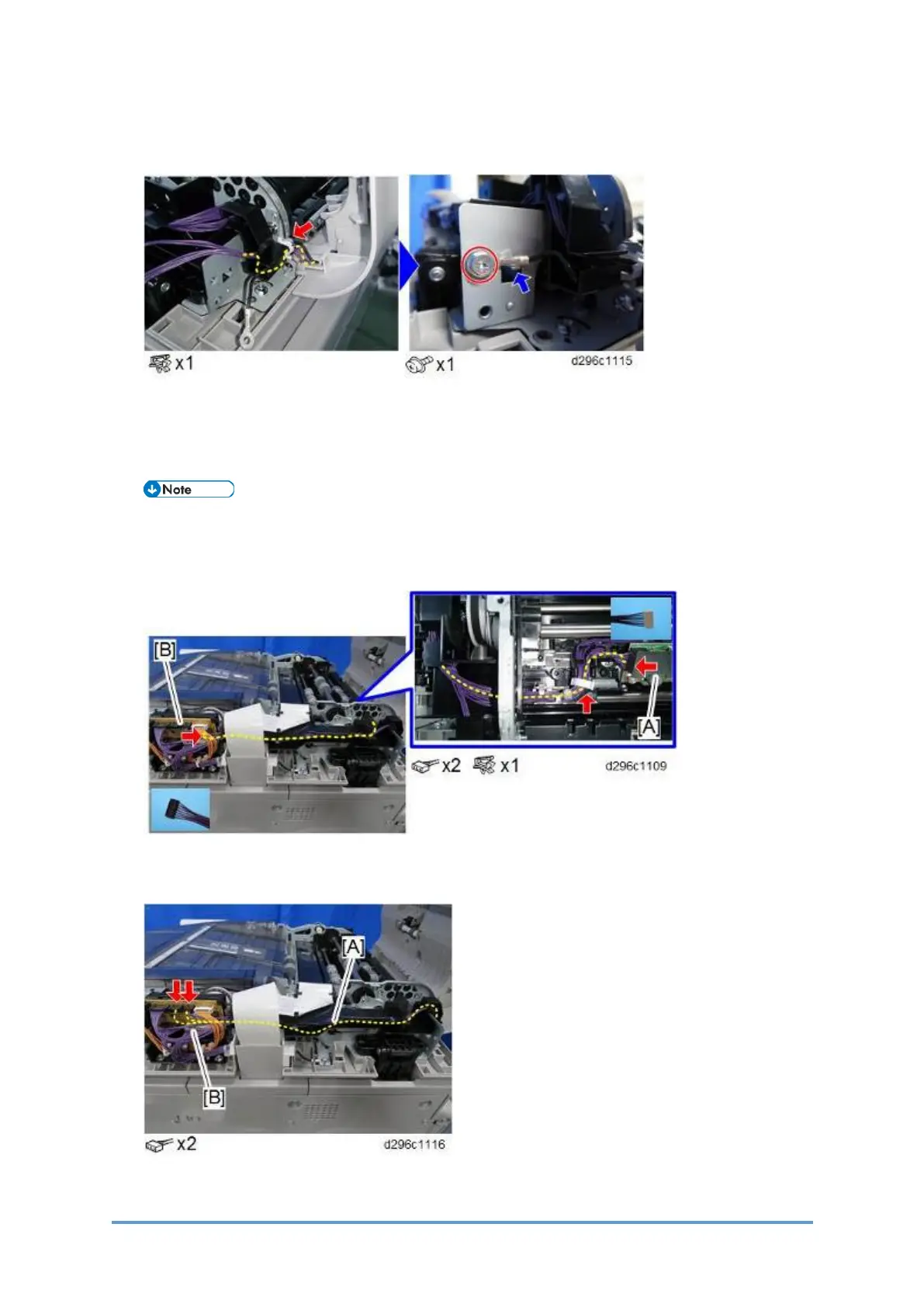

9. Attach the clamp while the top cover is open, and attach the ground wire while putting it on
the guide (marked by the blue arrow). (Screw: M3x6)
Connect the harness to the connector of the double-feed sensor (MFTB)
[A] and ADF relay board (PCB13) [B] (CN3), and then route it.
The connectors are different colors, connect as listed below.
- Double-feed sensor (PCB14)(PCB15): White connector
- ADF relay board (PCB13): Black connector
1. Connect the harnesses [A] from the ADF top cover to the connectors of the ADF relay
board (PCB13) [B] (CN5, CN6).
To Next Page
