Ricoh IM C400F

Paper Exit
SM 4-193 D0CA/D0C9/D0C8/D0CB
Replacement
&
Adjustment
4.17.2 IM C400SRF
Paper Exit Unit

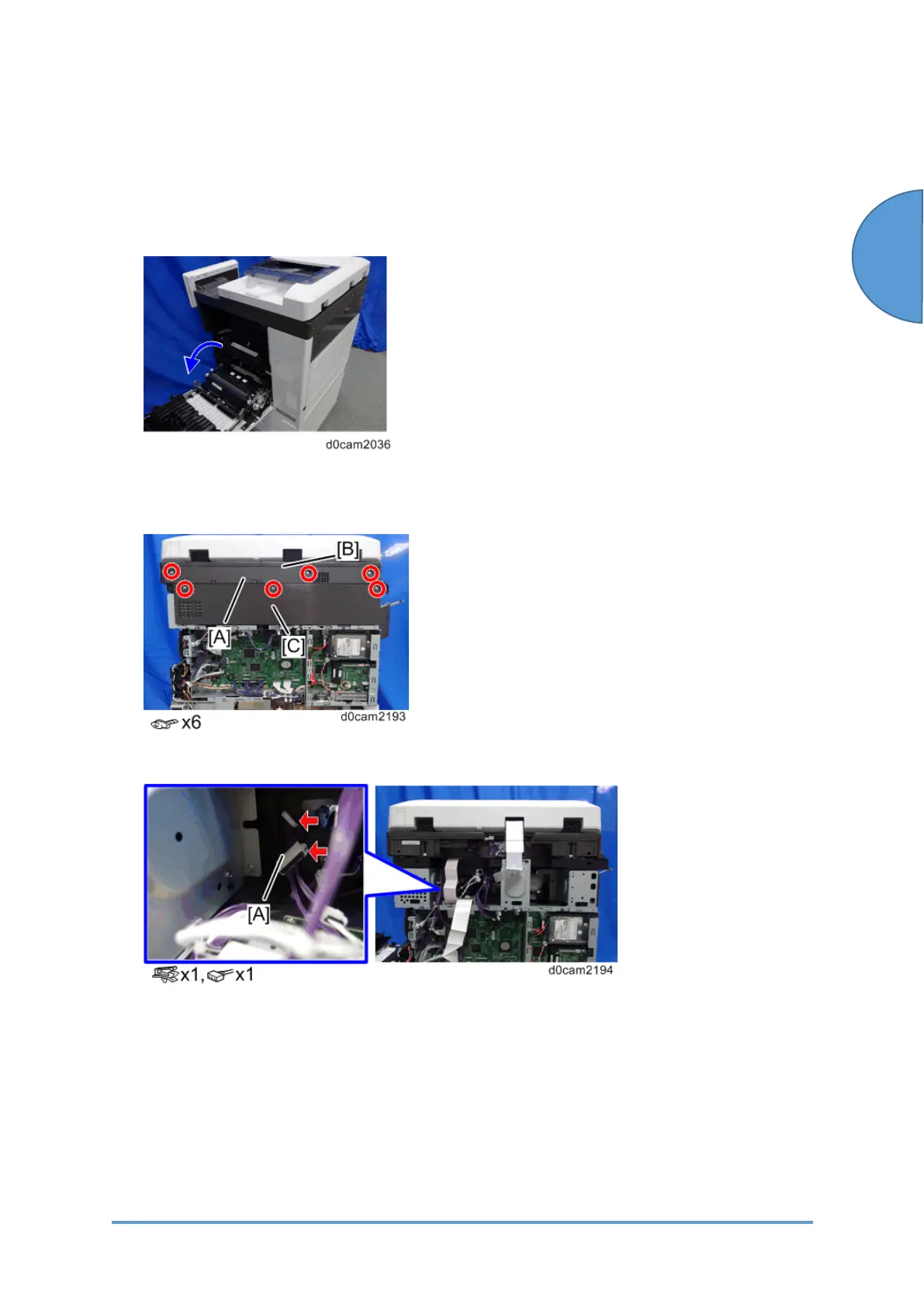

1. Open the right cover.
2. Remove the scanner rear cover [A],scanner rear small cover [B] and the rear upper cover
[C].
3. Remove the connector [A]
4. Remove the fusing unit.(Fusing Unit)
5. Remove the cover [A].
6. Remove the paper exit unit [B].
