PM/Yield Parts Settings
D0CA/D0C9/D0C8/D0CB 3-6 SM

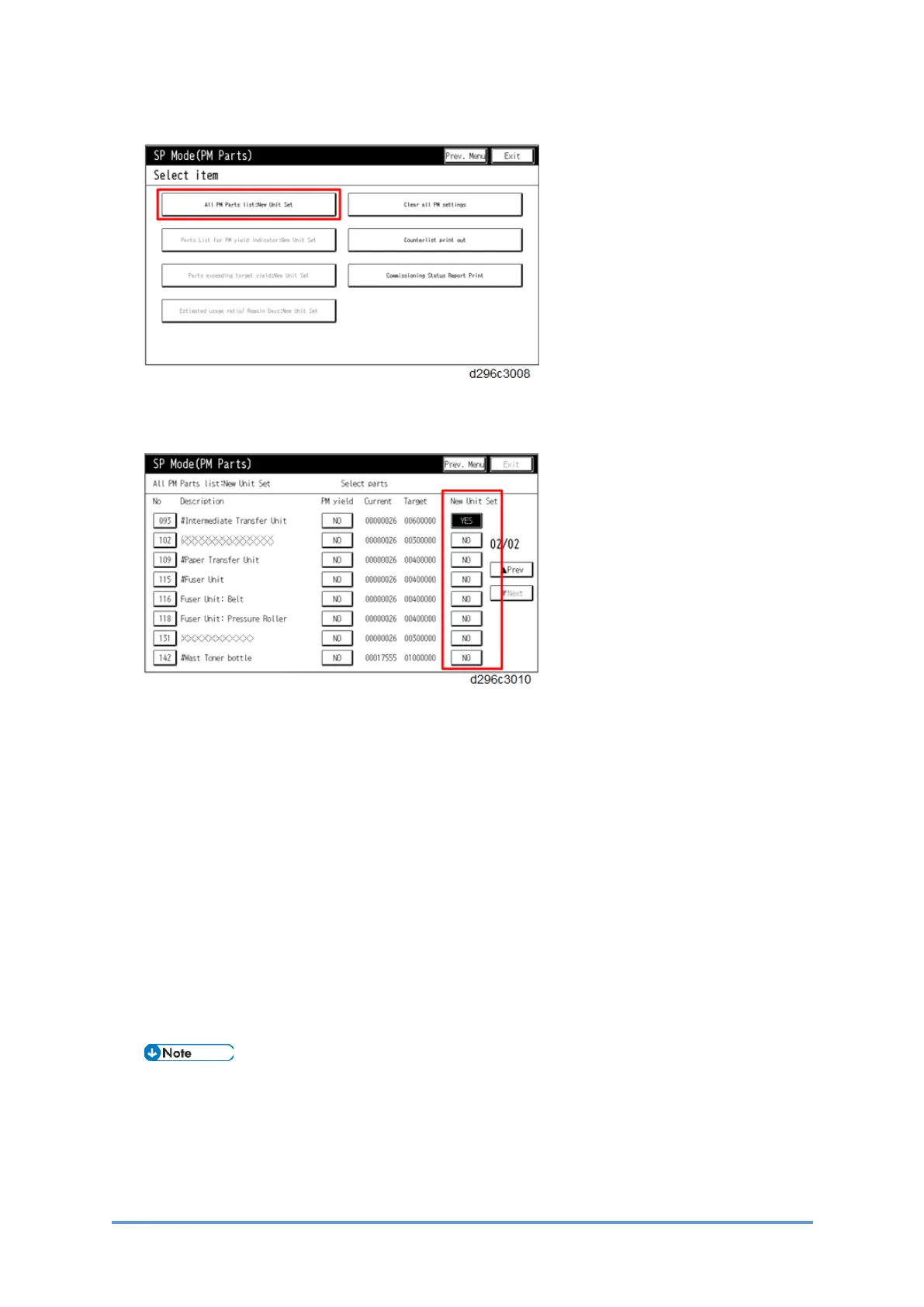

5. Press [All PM Parts List : New Unit Set].
6. Set the PM part that you want to replace to "YES" under "New Unit Set".
After pressing "YES", the [Exit] key will not be available.
7. Turn OFF the power and unplug the power cord.
8. Replace the PM parts and turn ON the power.
The machine will reset the PM counters automatically. In the case of the development unit,
developer initialization will also be done automatically.
9. Exit the SP mode.
3.2.2 AFTER INSTALLING THE NEW PM PARTS
1. Turn the main power ON, and enter the SP mode.
2. Make sure that the PM counters for the replaced units are "0" with SP7-621-002 to 208.
If the PM counter for a unit was not reset, then execute the new unit detect setting with
SP3-701 again and turn the main power OFF/ON.
Print out the PM counter list by following the procedure below.
1. Press [PM Counter / New Unit Set].
