Installation Requirements
SM 2-1 D0CA/D0C9/D0C8/D0CB
2. INSTALLATION
2.1 INSTALLATION REQUIREMENTS
2.1.1 ENVIRONMENT

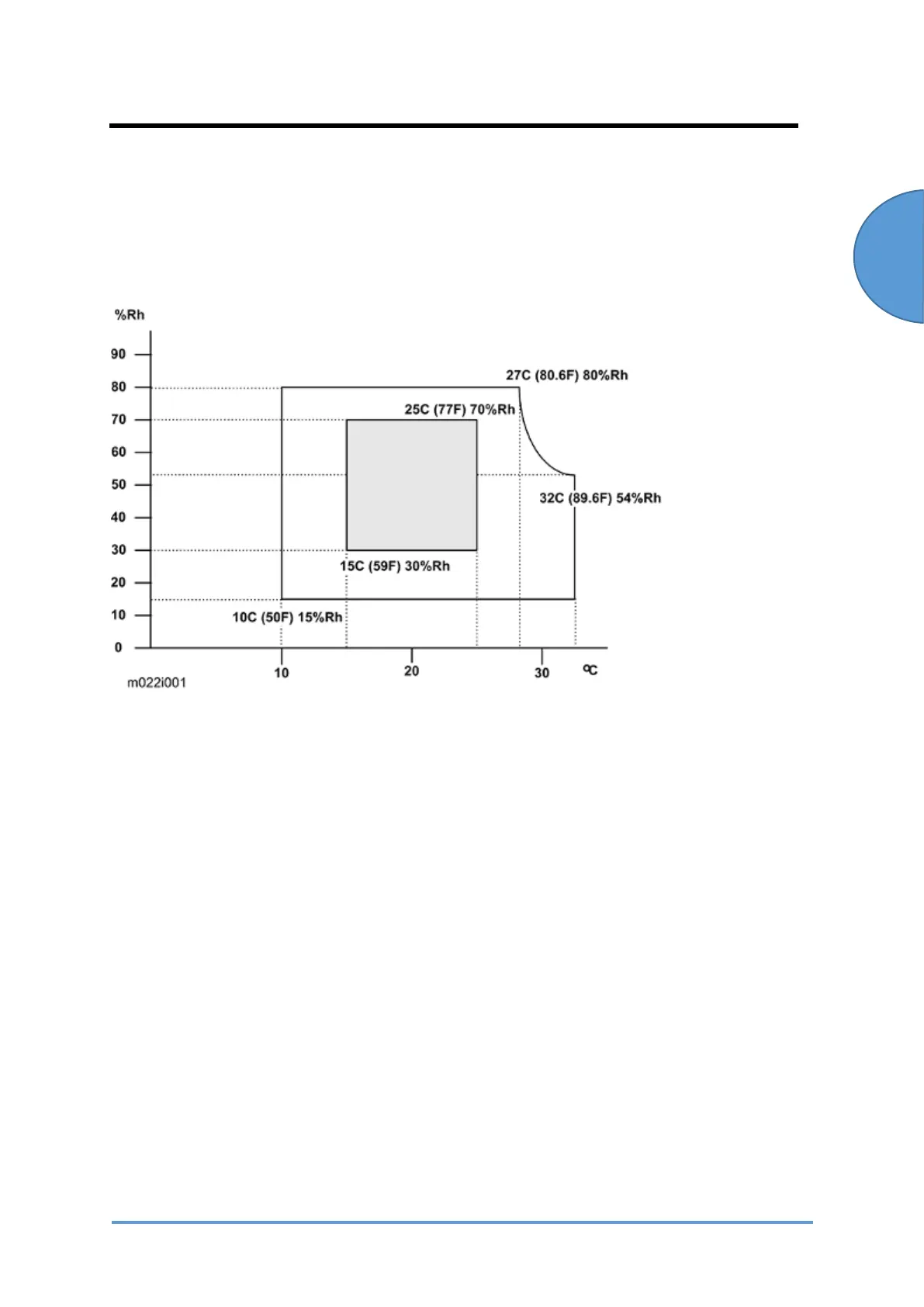

1. Temperature Range: 10°C to 32°C (50°F to 89.6°F)
2. Humidity Range: 15% to 80% RH
3. Ambient Illumination: Less than 1500 lux (do not expose to direct sunlight)
4. Ventilation: 3 times/hr/person or more
5. Avoid direct exposure to the following:
1) Cool air from an air conditioner
2) Heat from a heater
6. Do not install the machine in areas that are exposed to corrosive gas.
7. Do not install the machine at any location over 2,000 m (6,500 ft.) above sea level. [NA:
Can be installed up to 2,500m (8,202 ft.)]
8. Install the machine on a sturdy, level base. (Inclination on any side must be no more than 5
mm.)
9. Do not install the machine in areas that get strong vibrations.
2.1.2 MACHINE LEVEL
Front to back: Within 5 mm (0.2")
Right to left: Within 5 mm (0.2")
