Ricoh IM C400F

Input and Output Check
D0CA/D0C9/D0C8/D0CB 3-444 SM Appendices
3.13.3 INTERNAL FINISHER (IM C400SRF ONLY)

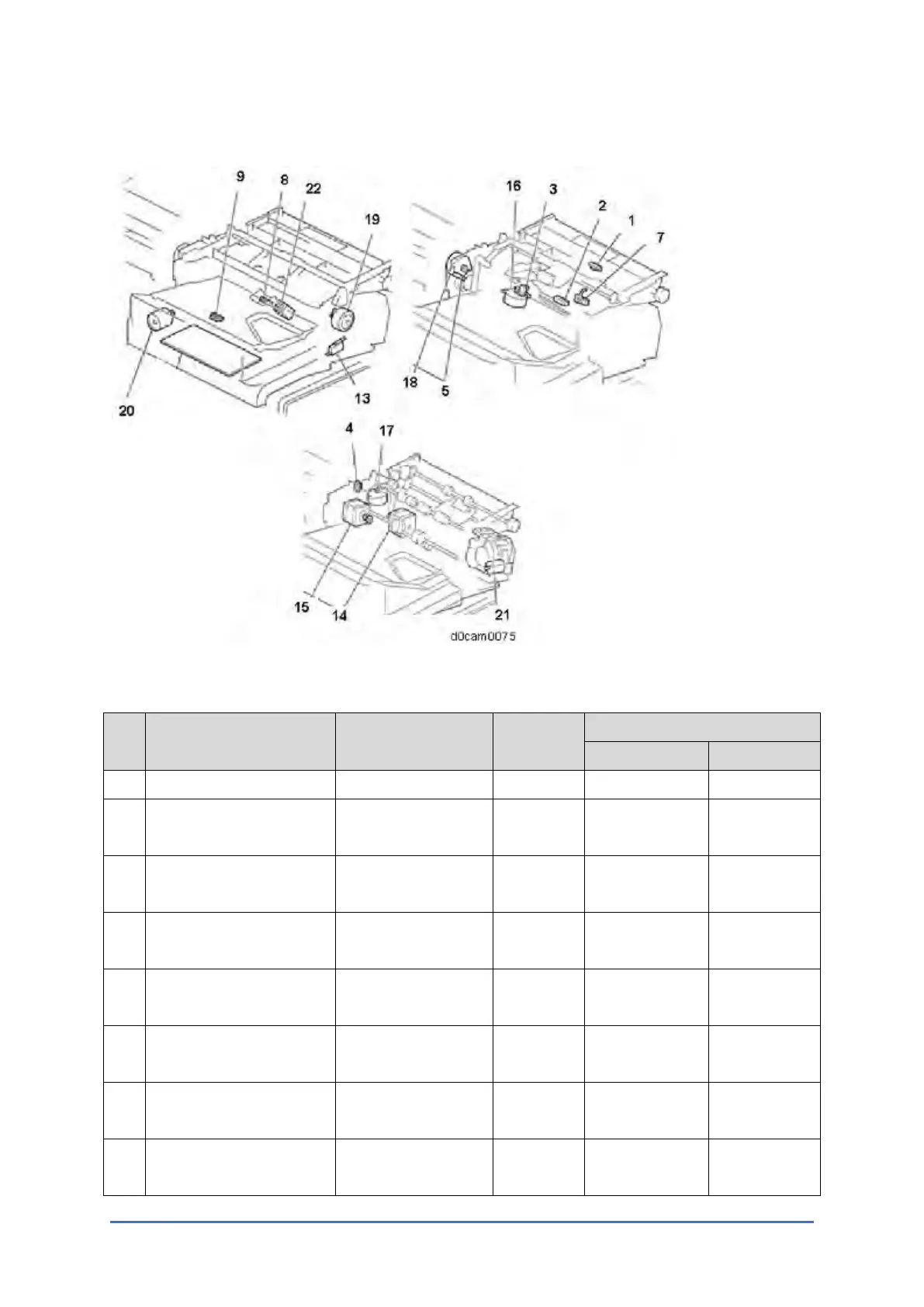

paper exit sensor INPUT Check
No. Part Name SP Name SP No. Reading
0 1
1 Entrance sensor (S45) Entrance Sensor 6-145-001 Closed Open
2 Paper exit sensor (S43) Paper Exit Sensor 6-145-002 Paper not
detected
Paper
detected
3 Jogger fence HP sensor
(S41)
Jogger HP Sensor 6-145-003 Paper not
detected
Paper
detected
4 Shift roller HP sensor
(S37)
Shift Roller HP SN 6-145-004 Paper not
detected
Paper
detected
5 Gathering roller HP
sensor (S38)
Positioning Roller
HP SN
6-145-005 Paper not
detected
Paper
detected
6 Exit guide plate HP
sensor (S44)
Ext Guide Plate HP
SN
6-145-006 Paper not
detected
Paper
detected
7 Staple tray paper
sensor (S42)
Staple Tray Paper
SN
6-145-007 Paper not
detected
Paper
detected
8 Remaining paper
sensor (S40)
Tray Paper Height
SN
6-145-008 Paper not
detected
Paper
detected
