Ricoh IM C400F

Operation Panel
SM 4-45 D0CA/D0C9/D0C8/D0CB
Replacement
&
Adjustment
4.5 OPERATION PANEL
The replacement procedures for the other parts are included in the FSM for the Smart
Operation Panel, because these parts are also used with other models.
4.5.1 OPERATION PANEL

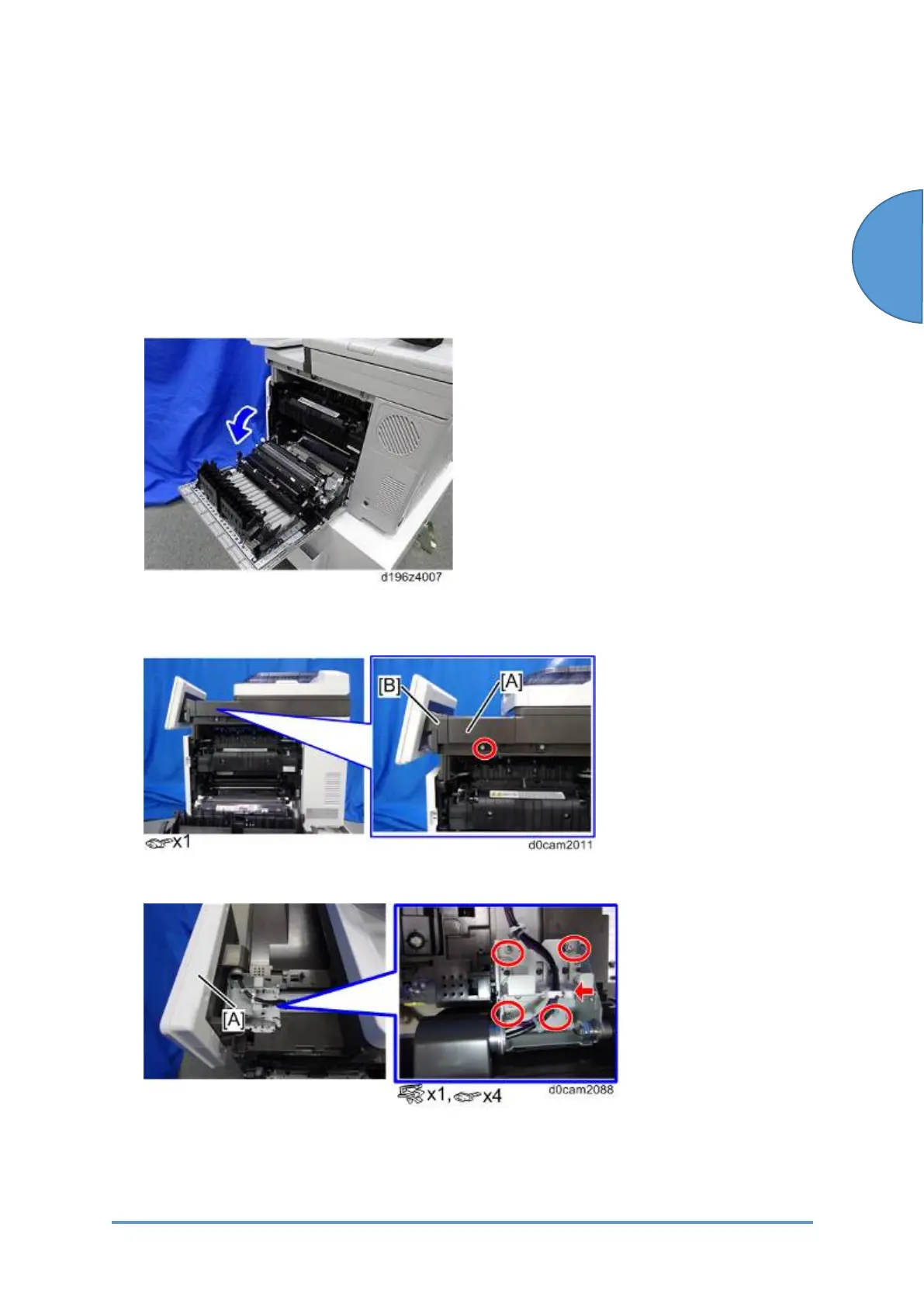

1. Open the right cover.
2. Remove the front right cover [A] and hinge cover [B].
3. Remove the screws fixing the operation panel [A].
