Troubleshooting for Other Problems
D0CA/D0C9/D0C8/D0CB 6-152 SM
6.13 TROUBLESHOOTING FOR OTHER PROBLEMS
6.13.1 WHEN YOU CANNOT OPEN THE RIGHT DOOR
Problem:
The right cover (duplex unit) does not open, even if the opening/closing lever is operated.
Causes:

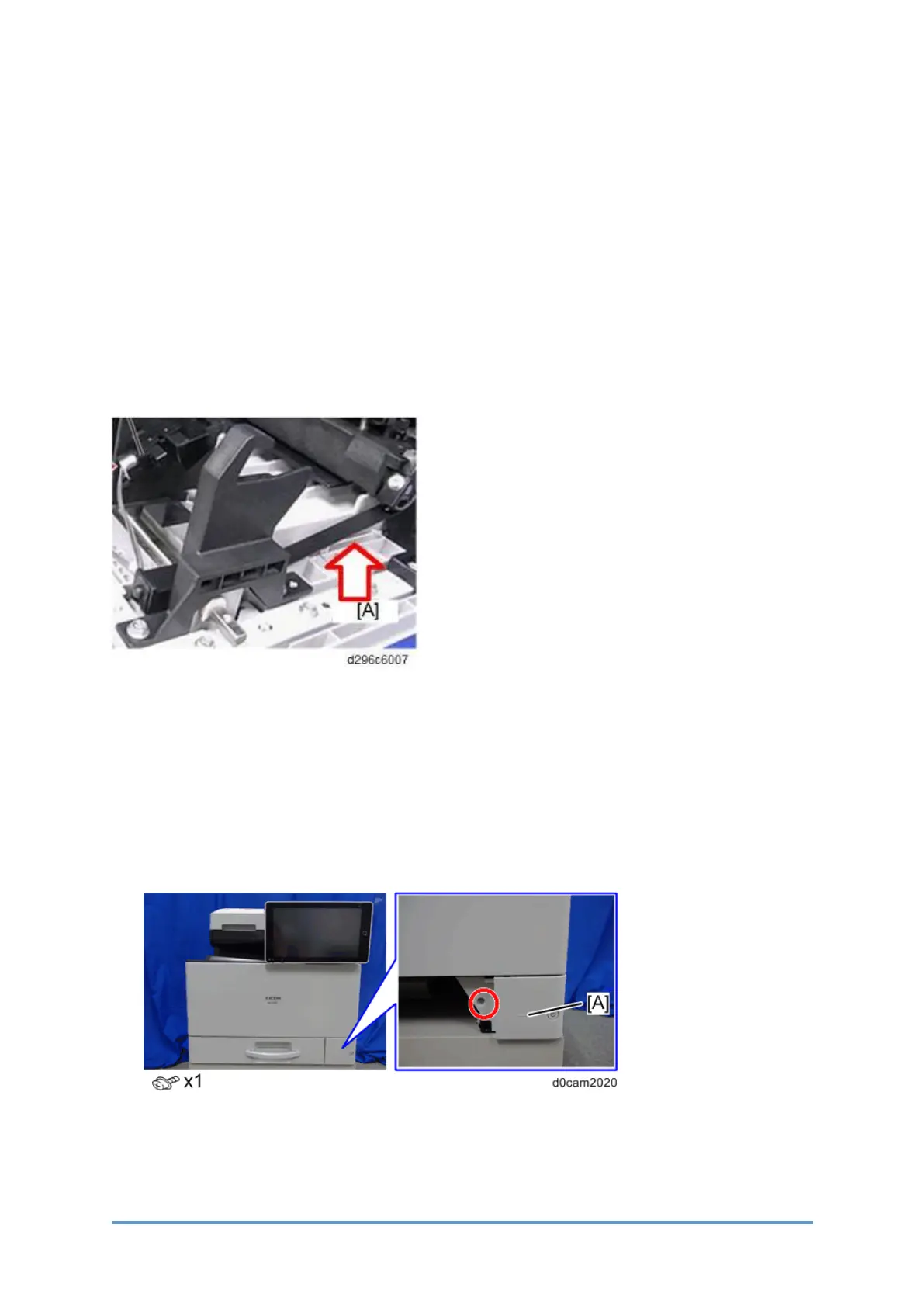

When replacing parts, for example, the duplex unit, hooking the hook band [A] has been
forgotten, so the opening/closing lever and the duplex hook parts do not work together. (Tension
is not applied.)
Solutions:
Release the hook, and then attach the belt.
1. Pull out the paper tray.
2. Remove the front lower cover [A].
IM C300series
To Next Page
